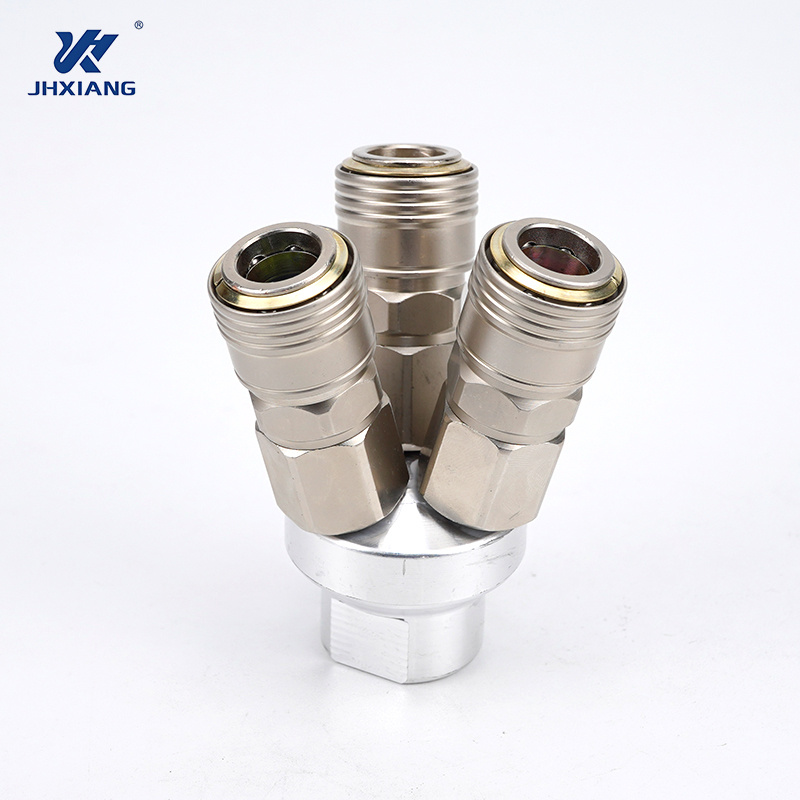

This push-to-connect tee fitting features a tool-free installation design, perfectly adapting to standard pneumatic hoses and tubing, and serves as an indispensable basic part for building stable, leak-free pneumatic circuits. Whether for new system setup or existing equipment maintenance, our industrial pneumatic hose tee delivers consistent performance in even the most demanding operating environments.
 |  |  |
The innovative push-to-connect structure enables one-step assembly and disassembly without special tools, cutting installation time by 80% for automation system integrators and reducing on-site maintenance downtime significantly.
Precision-machined sealing structure with high-performance NBR O-rings ensures zero air leakage under long-term cyclic operation, with a stable working pressure range of 0 to 1.0MPa, perfectly matching mainstream pneumatic system requirements.
Available in a full range of tube outer diameters and thread specifications, our 3-way pneumatic tee connector is compatible with all standard pneumatic tubing on the market. The high-quality brass main body and stainless steel clamping jaws deliver excellent corrosion resistance, suitable for both dry and humid industrial environments.
Parameter | Specification Details |
Model Series | 4-M5, 6-01, 6-02, 8-01, 8-02, 10-03, 12-04, 14-03, 16-04 |
Tube OD Range | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
Thread Type | Metric (M3, M4, M5, M6) / Inch (1/8", 1/4", 3/8", 1/2") |
Max Working Pressure | 1.0MPa (145psi) |
Working Temperature Range | -20℃ to +60℃ |
Main Body Material | High-Precision Brass |
Sealing Material | NBR Nitrile Rubber |
Applicable Medium | Filtered Compressed Air |
The Tee Pneumatic Fitting adopts an integrated 3-way T-shaped structure, consisting of four core components: main body, stainless steel clamping jaw, NBR sealing ring, and POM release ring. The symmetrical flow channel design minimizes air flow resistance, ensuring stable pressure transmission without additional flow loss.
Main body: High-purity brass with nickel plating for superior corrosion and rust resistance
Clamping jaw: 304 stainless steel with high hardness, ensuring firm tubing locking without slipping or damage
Sealing ring: High-elasticity NBR rubber, resistant to compression deformation and aging for long-term sealing stability
Release ring: High-strength POM engineering plastic, with smooth pressing feel and repeated disassembly resistance
Our brass pneumatic tee fitting is widely used in core industrial scenarios including:
Automated assembly lines and robotic workstations in automotive and electronics manufacturing
Pneumatic control systems for packaging, printing, and textile machinery
Material handling equipment and pneumatic conveying systems
Food processing and pharmaceutical production lines with clean air requirements
Mold clamping and positioning systems in injection molding equipment
All our stainless steel pneumatic tee connector products are manufactured under ISO 9001 quality management system, with 100% air tightness and pressure testing before delivery. We provide comprehensive custom support for industrial clients, including non-standard thread customization, special material development, and OEM/ODM services according to your drawings and samples, with flexible MOQ and fast lead times for bulk orders.
Our fittings are compatible with pneumatic tubing with outer diameters from 4mm to 16mm, covering all mainstream specifications in the industrial automation industry.
The maximum working pressure is 1.0MPa (145psi), with a burst pressure of over 3.0MPa for safety.
Yes, the push-to-connect design supports repeated assembly and disassembly, and the sealing performance will not be affected as long as the tubing end is flat and undamaged.
We provide tailored Tee Pneumatic Fitting solutions for industrial clients, including free sample testing, technical selection support, and competitive bulk pricing. Contact us today to get a free, no-obligation quote and professional pneumatic system connection advice for your project.
