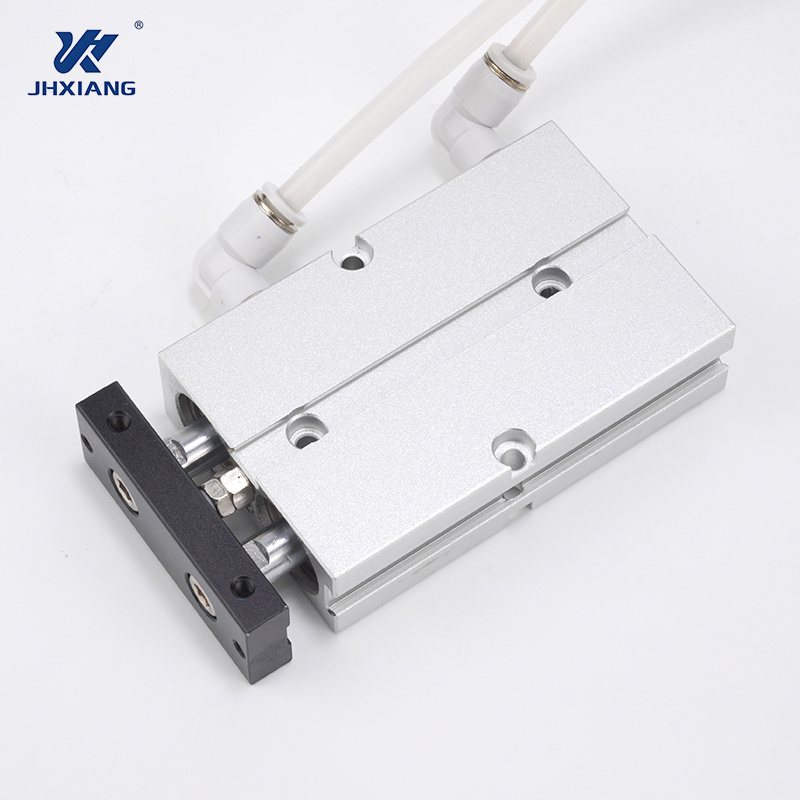

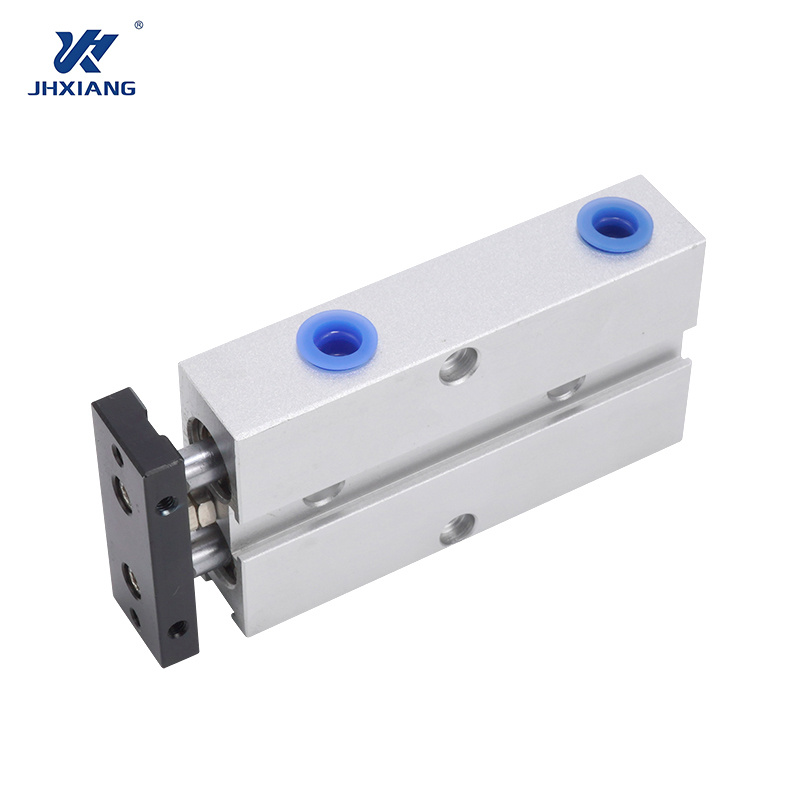

This high precision TN cylinder integrates an advanced dustproof sealing structure and dual-axis anti-torsion design, delivering exceptional repeatability, long service life, and reliable operation even in harsh working conditions. As a core pneumatic actuator, our dustproof TN cylinder is tailored to meet the rigorous demands of industrial equipment manufacturers and system integrators, providing a cost-effective, low-maintenance solution for precise linear motion control.
The sealed pneumatic cylinder adopts a dual-shaft dual-rod integrated structure, which effectively eliminates radial rotation and ensures ±0.01mm repeat positioning accuracy. This design outperforms single-shaft cylinders in synchronous motion and precise positioning, making it ideal for applications requiring strict motion control.
Our high precision dustproof seal TN cylinder is equipped with a multi-layer dustproof sealing structure, using wear-resistant nitrile rubber seals to block dust, debris, and pollutants from entering the cylinder body. This design significantly extends service life and reduces maintenance downtime in high-dust industrial environments.
The cylinder body is made of high-strength aerospace-grade aluminum alloy, with hard anodized surface treatment for excellent corrosion and impact resistance. The lightweight design facilitates flexible integration into automated equipment without compromising structural rigidity.
This industrial automation TN cylinder is fully compatible with mainstream series mounting dimensions on the market, enabling direct replacement without equipment structure modification. It supports a full range of standard mounting accessories, simplifying installation and reducing retrofitting costs for industrial users.
Parameter | Specification Details |
Bore Size | 10mm, 16mm, 20mm, 25mm, 32mm, 40mm |
Standard Stroke Range | 10mm to 300mm (customizable) |
Max. Working Pressure | 1.0Mpa |
Proof Pressure | 1.5Mpa |
Operating Temperature Range | -20℃ to 80℃ |
Repeat Positioning Accuracy | ±0.01mm |
Cylinder Body Material | Hard Anodized Aluminum Alloy |
Piston Rod Material | High Carbon Steel Chrome Plated |
Seal Material | Wear-Resistant Nitrile Rubber |
Mounting Type | Standard Foot, Flange, Clevis Mounting |
The TN cylinder features a compact integrated structure, consisting of a precision-machined cylinder barrel, dual chrome-plated piston rods, multi-layer sealing components, and end caps with built-in buffer mechanisms. The piston rod undergoes high-precision grinding and hard chrome plating, with a surface roughness of Ra≤0.02μm, ensuring smooth operation and minimal friction loss. The main body uses high-strength 6063 aluminum alloy with a 20μm hard anodized coating, providing superior wear and corrosion resistance. All sealing elements are made of high-performance nitrile rubber, resistant to oil, aging, and dust, ensuring long-term stable operation in harsh industrial environments.
Our dustproof TN cylinder is widely used across core industrial sectors, including automated assembly lines, electronic component manufacturing equipment, packaging machinery, printing and labeling systems, material handling equipment, CNC machine tool loading and unloading systems, new energy battery production lines, and woodworking machinery. It is particularly suitable for high-dust, high-cycle, and high-precision motion control scenarios, providing reliable linear drive solutions for industrial equipment manufacturers.
All our high precision TN cylinders undergo strict quality control in accordance with ISO 9001 standards, including 100% pressure testing, stroke accuracy testing, and cycle life testing before delivery. We provide comprehensive custom support for industrial users, including non-standard stroke customization, special sealing material upgrades, magnetic switch integration, and custom mounting accessories. Our professional engineering team offers one-to-one technical support, with fast sample delivery and stable mass production capacity to meet your customized project needs.
The standard stroke ranges from 10mm to 300mm, and we can customize non-standard strokes up to 500mm according to your specific application requirements.
Yes, our TN cylinder is fully interchangeable with the mainstream Airtac TN series, with consistent mounting hole positions and dimensions for direct replacement without equipment modification.
Yes, with its sealed structure and corrosion-resistant surface treatment, the cylinder can operate stably in high-humidity and mildly corrosive industrial environments.
We offer optional built-in magnetic switch slots and supporting magnetic switches to meet your position detection and automation control needs.
If you are an industrial equipment manufacturer, system integrator, or industrial procurement specialist looking for a reliable high precision TN cylinder supplier, we are here to support you. Contact us today to get a free custom quote, detailed product catalog, and professional technical consultation. Our team will respond to your inquiry within 24 hours and provide a tailored pneumatic solution for your project.
