As a premium aluminum pneumatic cylinder with a sensor-ready integrated design, this component delivers precise linear motion control, seamless compatibility with industrial monitoring systems, and long-lasting durability in harsh production environments. This sensor ready cylinder eliminates the need for secondary machining for sensor installation, streamlining assembly and reducing maintenance downtime for your automated production lines.

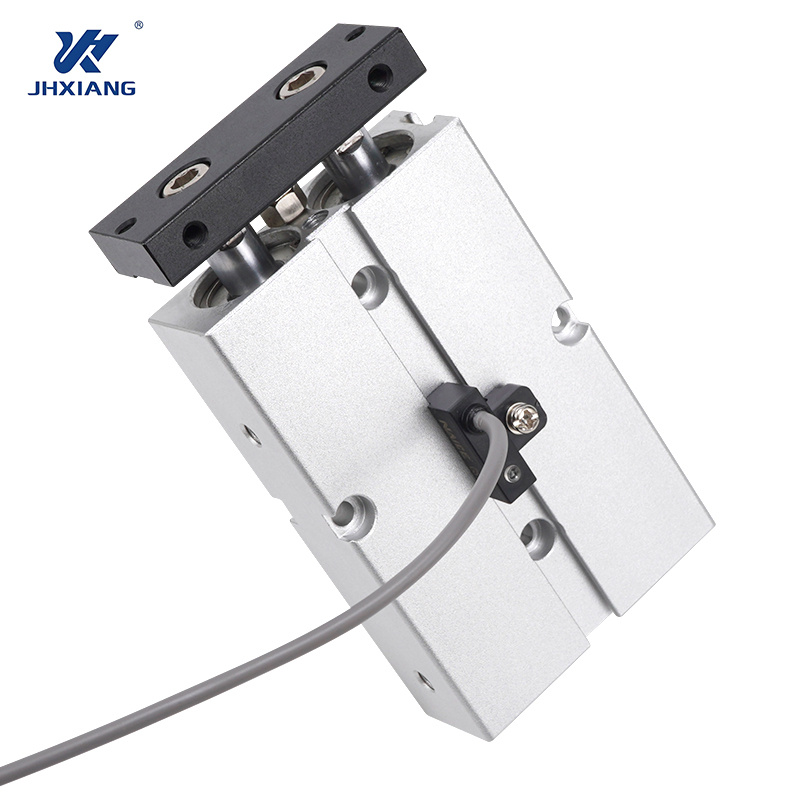

The automation cylinder features a pre-machined, universal sensor slot along the cylinder body, compatible with most mainstream industrial proximity sensors. This design enables real-time stroke position feedback, supporting fully automated cycle control and fault monitoring without additional drilling or modification.

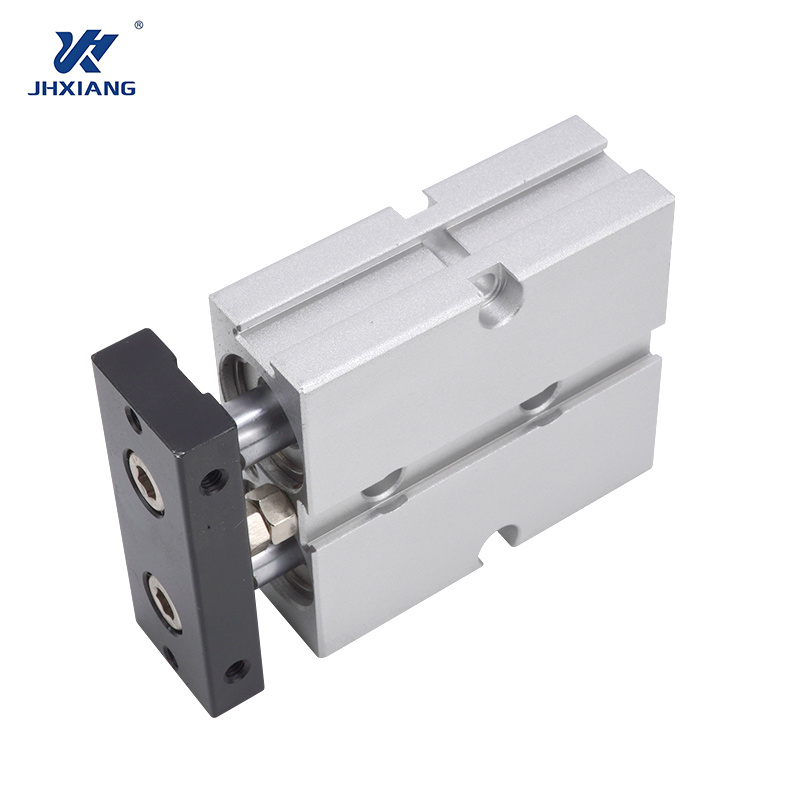

Crafted from high-precision extruded aluminum alloy, the TN cylinder offers exceptional tensile strength, corrosion resistance, and lightweight performance. The anodized surface treatment enhances wear resistance, ensuring stable operation even in dusty, humid, or high-vibration industrial settings.
Equipped with a high-performance piston and rod seal assembly, this aluminum pneumatic cylinder delivers minimal friction, consistent output force, and zero internal or external leakage. The optimized sealing structure extends service life and reduces air consumption, lowering long-term operating costs.
The cylinder follows industry-standard mounting dimensions, supporting multiple installation configurations including foot, flange, and pivot mounting. This universal design enables direct replacement of most mainstream cylinder models, simplifying equipment retrofitting and spare parts management.
Parameter | Standard Specification |

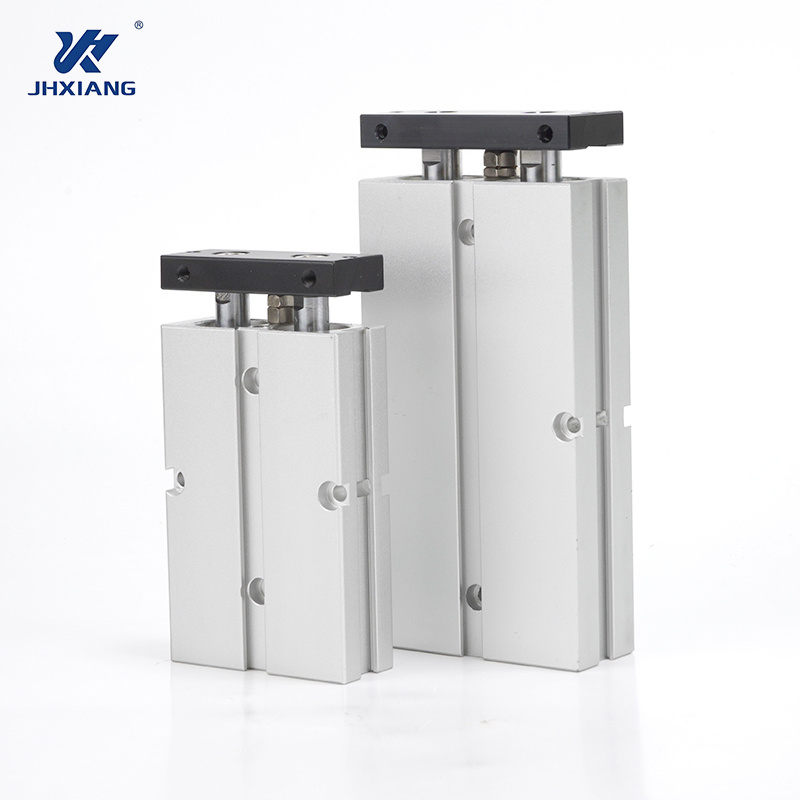

Bore Size | 10mm, 16mm, 20mm, 25mm, 32mm, 40mm |
Stroke Range | 10mm to 1000mm (customizable) |
Operating Pressure | 0.1MPa to 1.0MPa |
Operating Medium | Filtered, lubricated compressed air |
Operating Temperature | -20℃ to 80℃ |
Body Material | Anodized High-Strength Aluminum Alloy |
Sensor Compatibility | Universal T-slot for industrial proximity sensors |
Mounting Options | Foot, Flange, Trunnion, Clevis |
The sensor ready cylinder features a robust, simplified structure designed for industrial reliability. The cylinder barrel is precision-drawn anodized aluminum, ensuring a smooth inner surface for low-friction piston movement. The front and rear end caps use die-cast aluminum alloy for high impact resistance, while the piston rod is made of hard chrome-plated carbon steel for superior wear and corrosion resistance. High-performance nitrile rubber seals are used throughout, with an integrated dust wiper to prevent particulate ingress, extending service life even in harsh industrial environments. The integrated sensor slot is formed in one step during extrusion, ensuring consistent dimensional accuracy for seamless sensor installation.
This automation cylinder is widely used across core industrial sectors, including automated assembly lines, automotive component manufacturing, packaging machinery, material handling systems, electronic production equipment, printing machinery, and textile processing equipment. It is ideal for applications requiring precise linear actuation, such as part positioning, clamping, pushing, and lifting in automated production processes.
Manufactured by WENZHOU HAOYANG PNEUMATIC CO., LTD, our TN cylinder is produced under a strict ISO-compliant quality management system, with 100% pressure and performance testing before shipment. We offer comprehensive custom support for industrial bulk purchasers, including custom stroke lengths, special mounting configurations, corrosion-resistant coatings, and specialty seal materials for extreme temperature or chemical environments. Our robust supply chain ensures timely bulk delivery, with global shipping options via DHL, FedEx, UPS, TNT, and EMS.
Our standard aluminum pneumatic cylinder supports an operating pressure range of 0.1MPa to 1.0MPa, with custom high-pressure options available for specialized industrial applications.
Yes, the integrated T-slot is compatible with most mainstream industrial proximity sensor models, and we can provide pre-assembled sensor solutions for bulk orders.
We offer fully customizable stroke lengths, special mounting interfaces, corrosion-resistant surface treatments, and high/low-temperature seal materials to meet your unique production requirements.
If you are a professional industrial purchaser, automation system integrator, or manufacturing facility operator looking for a reliable high-performance TN cylinder, our team is ready to provide you with a free, no-obligation quote tailored to your specific needs. We also offer full technical support, custom solution design, and comprehensive after-sales service to ensure seamless integration into your industrial systems. Contact us today to discuss your requirements and get your free quote.
