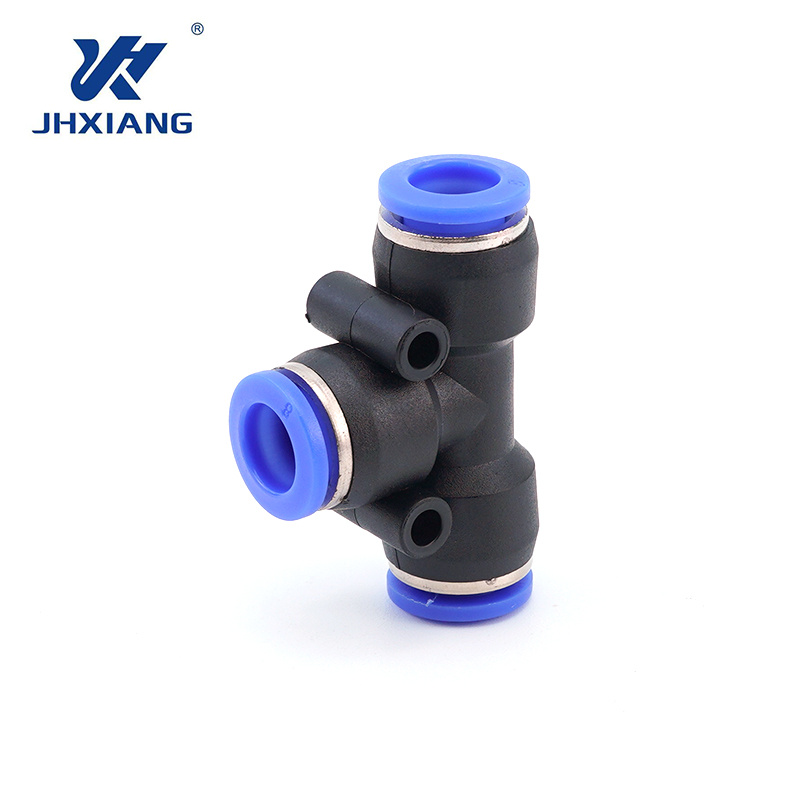

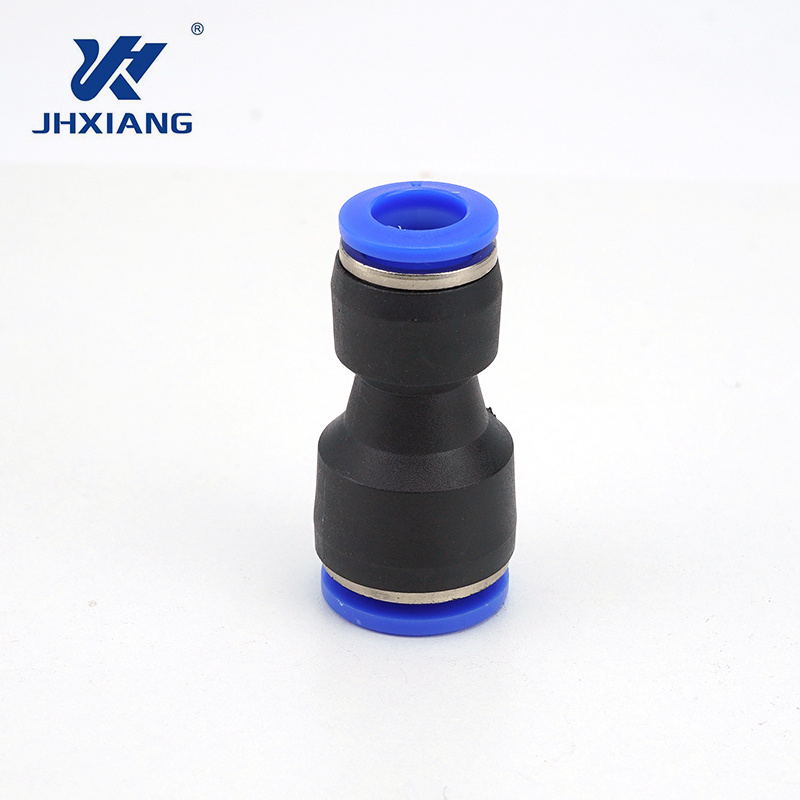

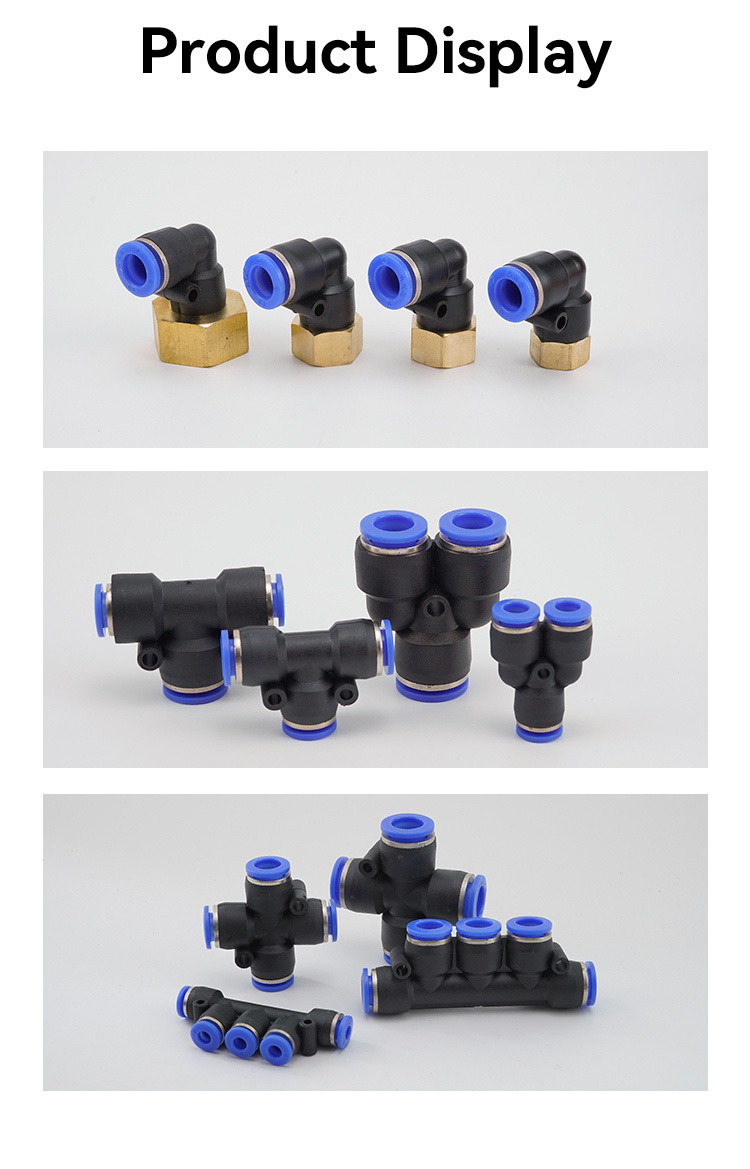

Manufactured under the JHXIANG brand, this connector is optimized to address the unique challenges of high-frequency reciprocating cylinder applications, delivering exceptional anti-vibration performance, zero-leak sealing, and long-term reliability in dynamic industrial environments. Designed for seamless integration with pneumatic cylinders, our industrial cylinder pneumatic connector is the preferred choice for industrial equipment manufacturers, automation system integrators, and bulk procurement clients seeking a durable, easy-to-install connection solution for cylinder-driven pneumatic systems.
Cylinder-Specific Dynamic Optimization: The blue pneumatic connector is structurally optimized for the high-frequency reciprocating motion of industrial cylinders, with enhanced anti-vibration and anti-pull-out performance to maintain a secure, leak-free connection even during continuous cylinder operation.
Tool-Free Push-to-Connect Design: The innovative push-in structure allows for tool-free installation and removal in seconds, drastically reducing assembly time and maintenance labor costs for cylinder system installation and servicing.

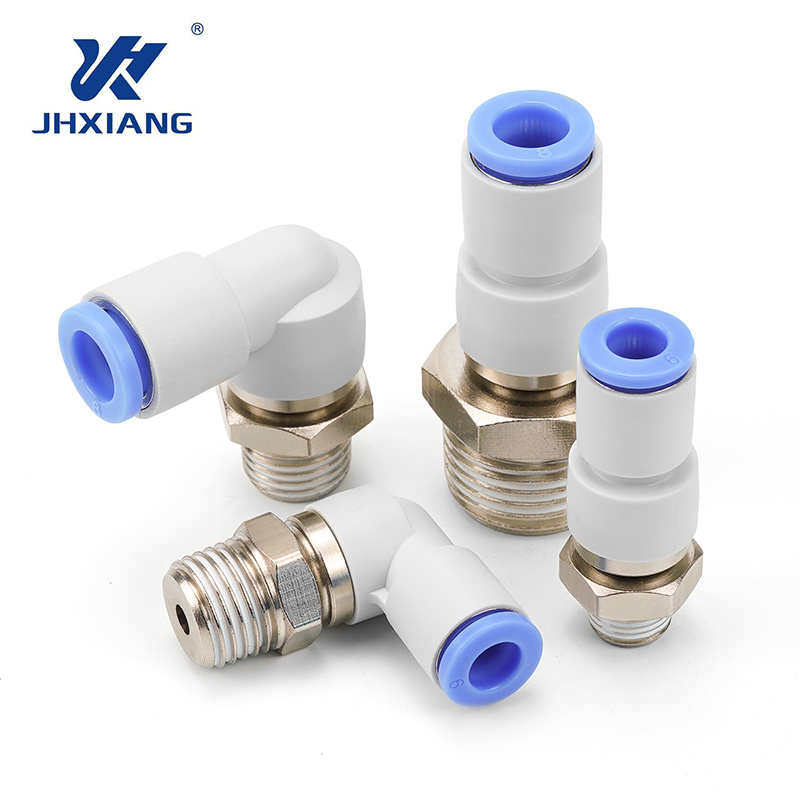

Intuitive Size Identification: The blue POM release cap is clearly marked with the compatible tubing outer diameter, enabling fast, error-free selection and installation, reducing assembly errors in industrial production environments.
Superior Sealing & Wear Resistance: Precision-engineered internal sealing components deliver exceptional air tightness, with excellent resistance to wear and temperature fluctuations, ensuring long-term zero-leak performance in dynamic cylinder applications.
Universal Compatibility: Our flexible pneumatic tube connector supports a full range of metric and inch tubing sizes, as well as all major global thread standards, ensuring seamless compatibility with standard pneumatic cylinders and tubing from all leading manufacturers.
Long Reusable Service Life: The high-quality stainless steel snap spring design supports thousands of insertion and removal cycles without performance degradation, reducing replacement costs and system downtime.

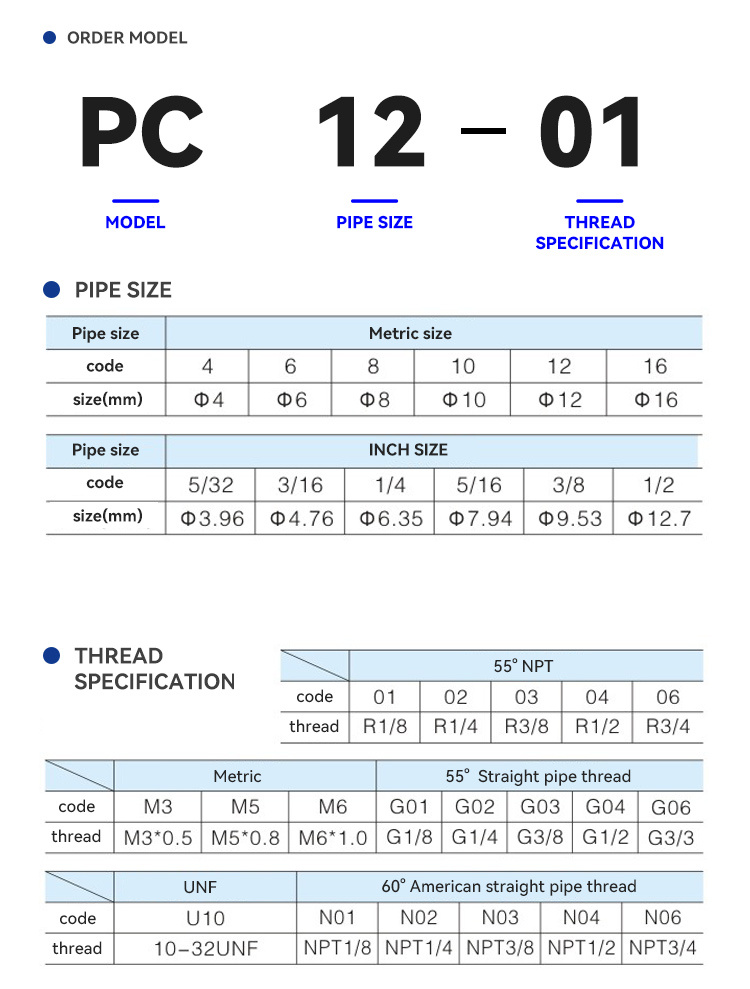

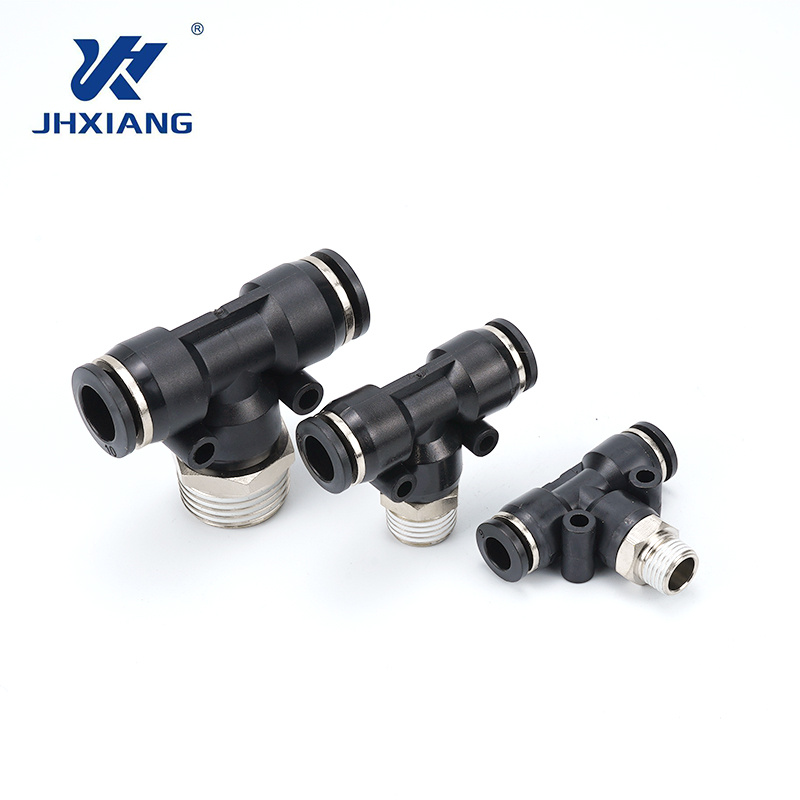

Parameter | Specification Details |
Metric Tubing Compatibility | 4mm, 6mm, 8mm, 10mm, 12mm, 16mm outer diameter |
Inch Tubing Compatibility | 5/32", 3/16", 1/4", 5/16", 3/8", 1/2" outer diameter |
Supported Thread Standards | Metric (M3, M5, M6), 55° G Straight Thread, 55° R Taper Thread, 60° NPT Taper Thread, 60° UNF Straight Thread |
Thread Size Options | R1/8, R1/4, R3/8, R1/2, R3/4; G1/8, G1/4, G3/8, G1/2, G3/4; NPT1/8, NPT1/4, NPT3/8, NPT1/2, NPT3/4; 10-32UNF |
Standard Model Format | PC [Tubing Size Code] - [Thread Size Code] (e.g. PC 12 - 01) |
Operating Temperature Range | -5℃ ~ 60℃ (standard NBR seal) |

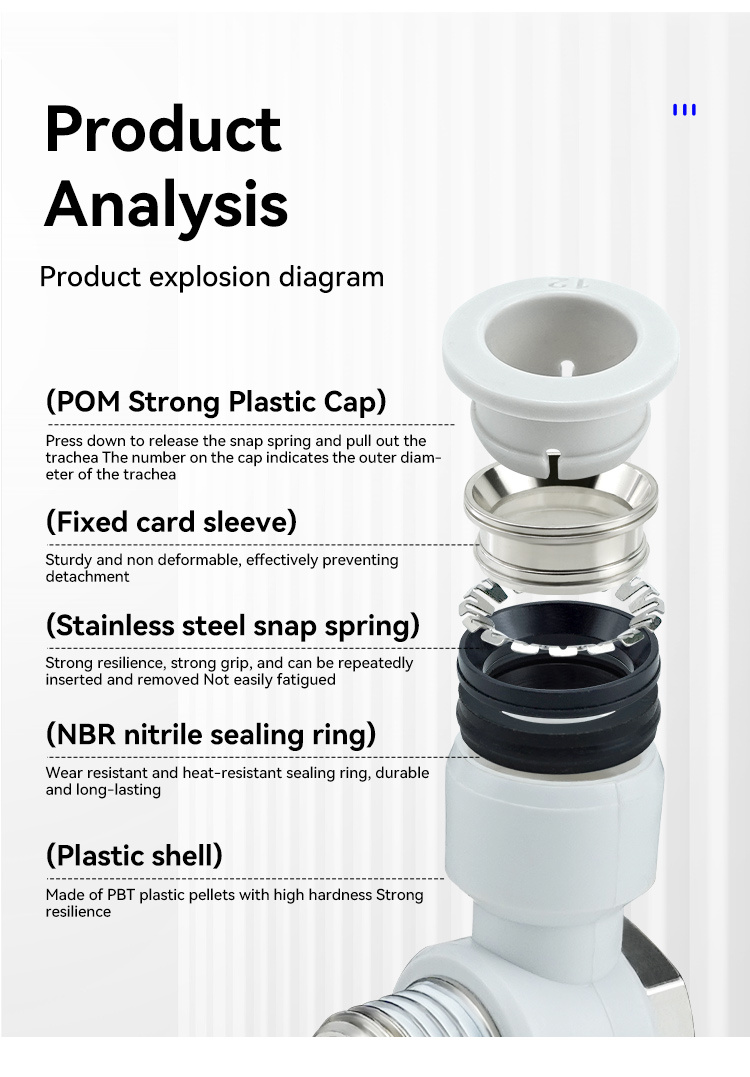

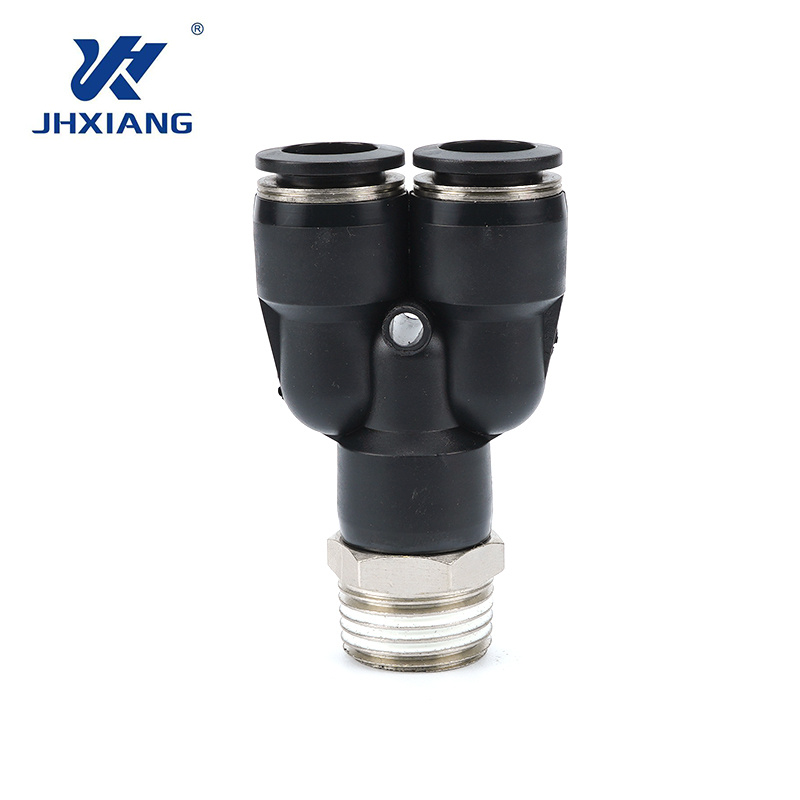

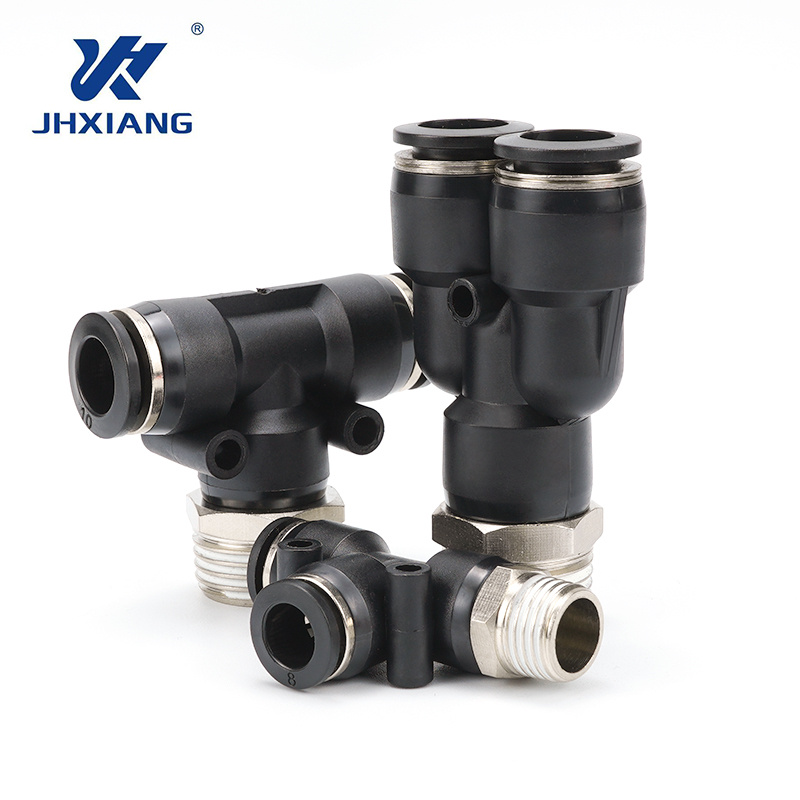

Every push in pneumatic connector for cylinder is constructed with premium, industrial-grade materials, with each component precision-engineered for optimal performance in dynamic cylinder applications. The main body is manufactured from high-hardness PBT engineering plastic pellets, which offer exceptional impact resistance, corrosion resistance, and dimensional stability, even under continuous vibration from cylinder operation. The signature blue release cap is made of high-strength POM plastic, with clear size marking for easy identification, and provides smooth, reliable actuation for tubing release during maintenance. A precision-machined fixed ferrule is integrated into the design to prevent deformation, effectively enhancing the connector’s anti-pull-out performance during cylinder reciprocation. The internal clamping component is a 304 stainless steel snap spring, which delivers superior rebound resilience and gripping force, firmly securing the tubing to prevent pull-out even under high-frequency vibration. The sealing element is a high-performance NBR nitrile rubber sealing ring, which offers excellent wear resistance, heat resistance, and air tightness, ensuring zero leakage throughout the connector’s service life.

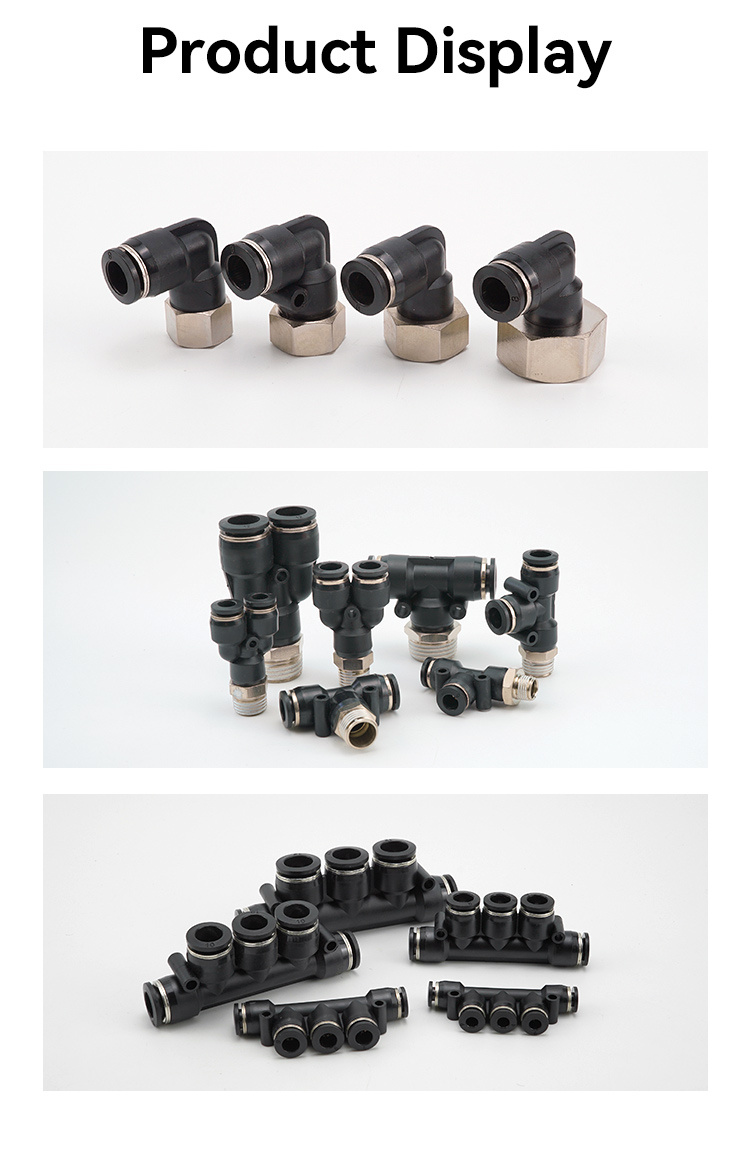

Our industrial pneumatic quick connector is purpose-built for cylinder-driven applications across a wide range of industrial sectors, including industrial pneumatic cylinder systems and actuator controls, robotic and collaborative robot pneumatic actuation systems, automated assembly lines and material handling equipment, packaging machinery and case sealing equipment, automotive manufacturing and assembly lines, textile machinery and garment production equipment, printing and paper processing machinery, as well as food and beverage production equipment.
Each blue pneumatic connector undergoes rigorous 100% quality testing before leaving the factory, including pressure resistance testing, air leakage testing, vibration resistance testing, and repeated insertion cycle testing, to ensure every unit meets our strict industrial quality standards. We offer comprehensive custom support for industrial bulk procurement clients, including custom tubing and thread specifications, special material upgrades for extreme operating conditions, custom color coding, and custom labeling services. Our professional technical team provides full-cycle support, from pre-sales selection guidance to after-sales troubleshooting, to ensure seamless integration and optimal performance of our connectors in your cylinder systems.
Yes, this connector is specially engineered and structurally optimized for high-frequency reciprocating industrial cylinder applications, with enhanced anti-vibration and anti-pull-out performance to maintain a secure, leak-free connection during continuous dynamic operation.
The blue POM release cap is clearly printed with the compatible tubing outer diameter number, enabling fast, error-free selection and installation in industrial production environments.
The connector uses a high-performance NBR nitrile rubber sealing ring, which delivers excellent wear resistance, heat resistance, and air tightness, ensuring long-term zero-leak performance in industrial cylinder applications.
If you are an industrial equipment manufacturer, system integrator, or bulk procurement client looking for high-reliability blue pneumatic connector solutions for your industrial cylinder applications, contact us today. We offer competitive bulk pricing, flexible custom engineering options, and fast lead times for all orders. Submit your inquiry to receive a free, no-obligation quote tailored to your specific application and specification requirements, and our technical team will respond to you within 24 hours.
