Designed to be fully compatible with both double acting and single acting pneumatic cylinders, this valve delivers consistent actuation performance across a wide range of industrial operating conditions. Manufactured under the JHXIANG brand, our 4V series pneumatic solenoid valve adheres to strict international industrial standards, making it the preferred choice for industrial equipment manufacturers, system integrators, and bulk procurement clients seeking long-lasting, low-maintenance pneumatic control solutions.
Wide Voltage Adaptation & Ultra-Low Power Consumption: The standard DC24V model supports a voltage range of DC21.6V~26.4V, with power consumption as low as 3.0W and 4.8W options, reducing energy costs for long-term industrial operation while maintaining stable actuation even during voltage fluctuations.
IP65 Grade Protection & 100%ED Duty Cycle: With an IP65 sealed enclosure, our industrial pneumatic solenoid valve is fully protected against dust and water spray, suitable for harsh industrial environments. The 100%ED rating allows for continuous, non-stop operation without overheating or performance degradation.
Broad Working Pressure Range: Optimized for a working pressure range of 0.15~0.8MPa, the valve delivers consistent switching performance across low to medium pressure pneumatic systems, eliminating the need for frequent pressure adjustments.
International Certification Compliance: All our DC24V pneumatic solenoid valve models are CE certified, meeting EU safety and performance requirements for industrial equipment integration.

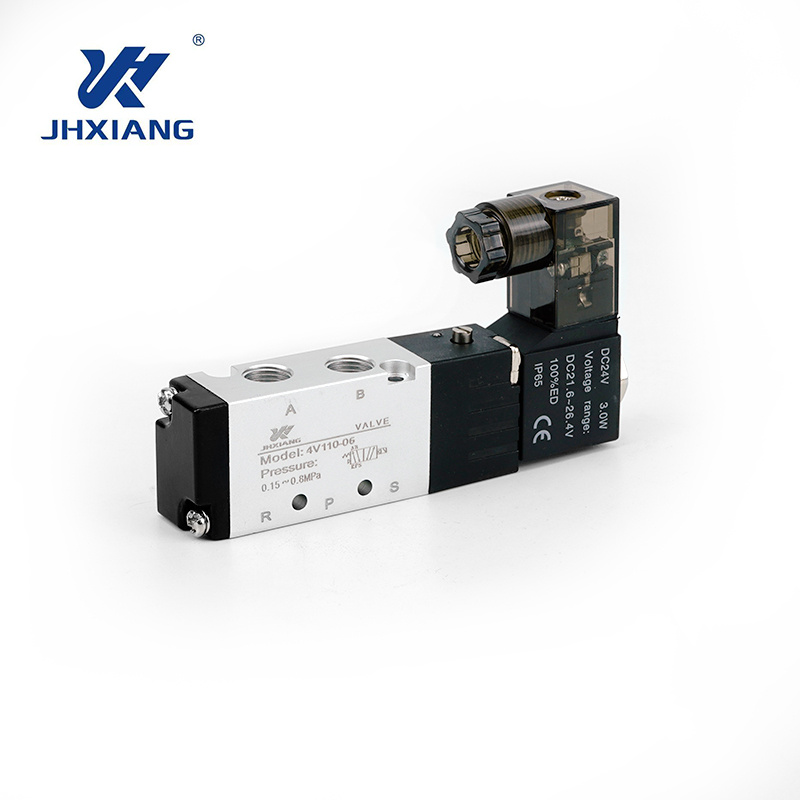

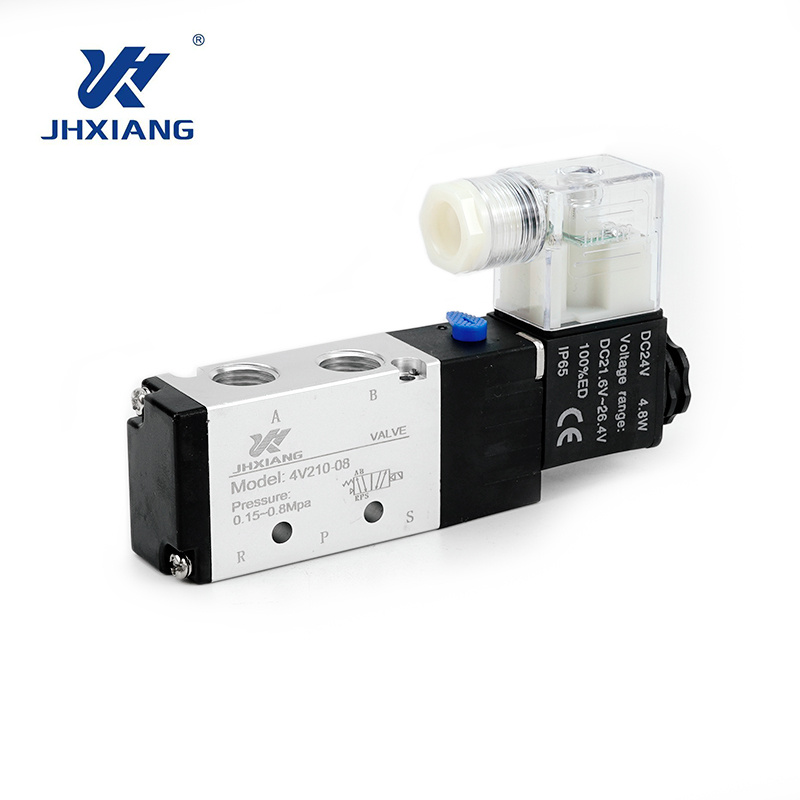

Parameter | 4V210-08 Model | 4V110-06 Model |
Rated Coil Voltage | DC24V | DC24V |
Allowable Voltage Range | DC21.6V~26.4V | DC21.6V~26.4V |
Power Consumption | 4.8W | 3.0W |
Working Pressure Range | 0.15~0.8MPa | 0.15~0.8MPa |
Protection Grade | IP65 | IP65 |
Duty Cycle | 100%ED | 100%ED |
Core Certification | CE | CE |

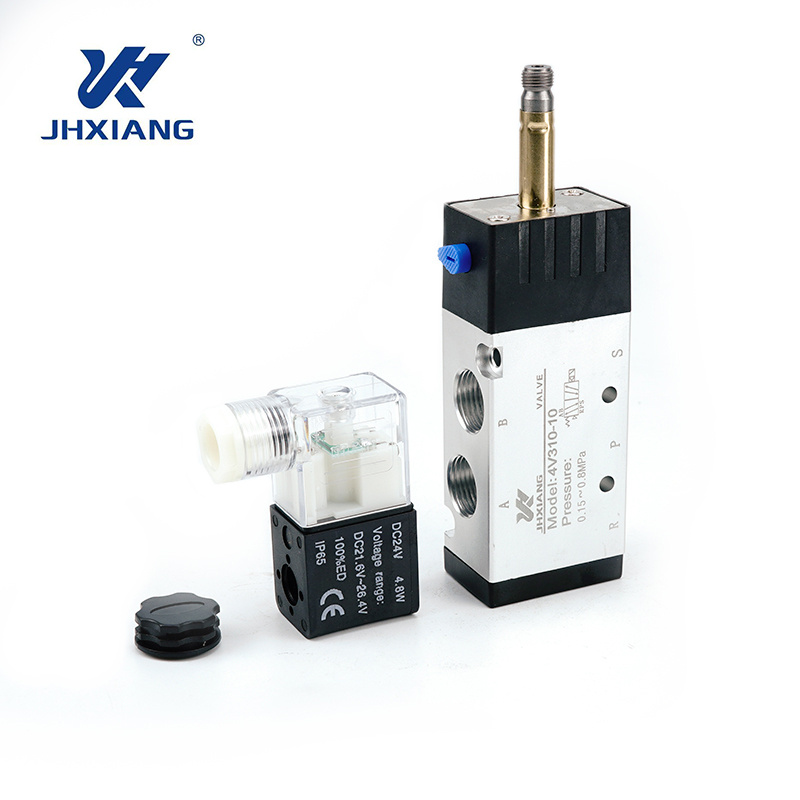

The double acting single acting pneumatic solenoid valve features a robust, precision-engineered structure designed for industrial durability. The valve body is constructed from high-strength, corrosion-resistant aluminum alloy, with precision-machined internal flow channels to minimize air pressure loss and maximize actuation response speed. The electromagnetic coil is made of high-purity oxygen-free copper, ensuring excellent electrical conductivity and thermal stability for long-term continuous operation. High-performance wear-resistant sealing elements are integrated throughout the valve body, effectively preventing internal and external leakage even after millions of switching cycles. The IP65 rated enclosure is made of impact-resistant engineering plastic, providing reliable protection against dust, moisture, and mechanical impact in harsh factory environments.
Our IP65 pneumatic directional control valve is widely used across a diverse range of industrial sectors, including automated assembly lines and intelligent manufacturing systems, packaging machinery and food processing equipment, textile printing and dyeing machinery, automotive manufacturing and assembly equipment, chemical and pharmaceutical production pneumatic control systems, as well as material handling and robotic pneumatic actuation systems.
Every double acting single acting pneumatic solenoid valve undergoes rigorous performance testing before leaving the factory, including pressure resistance testing, leakage testing, voltage adaptation testing, and continuous operation cycle testing, to ensure each unit meets our strict quality standards. We offer comprehensive custom support for industrial bulk procurement clients, including custom voltage specifications, port size adjustments, special protection grade upgrades, and custom labeling services. Our professional technical team provides full-cycle support, from pre-sales selection guidance to after-sales maintenance support, to ensure seamless integration of our products into your industrial systems.
Yes, this valve is specially designed to be fully compatible with both double acting and single acting pneumatic cylinders, delivering stable and reliable directional control for both cylinder types.
The standard DC24V model supports a wide voltage range of DC21.6V~26.4V, maintaining stable performance even during common industrial voltage fluctuations.
The valve has a maximum working pressure of 0.8MPa, with a minimum working pressure of 0.15MPa, covering the vast majority of industrial pneumatic system pressure requirements.
If you are an industrial equipment manufacturer, system integrator, or bulk procurement client looking for high-performance double acting single acting pneumatic solenoid valve solutions, contact us today. We offer competitive bulk pricing, custom engineering support, and fast lead times for all orders. Fill out our inquiry form to get a free, no-obligation quote tailored to your specific application requirements, and our technical team will respond to you within 24 hours.
