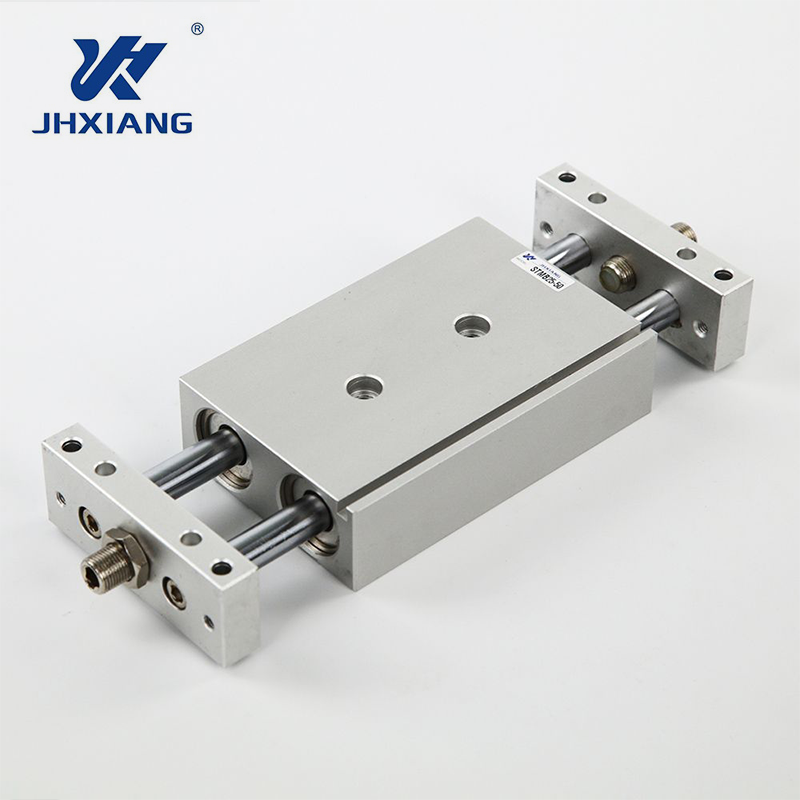

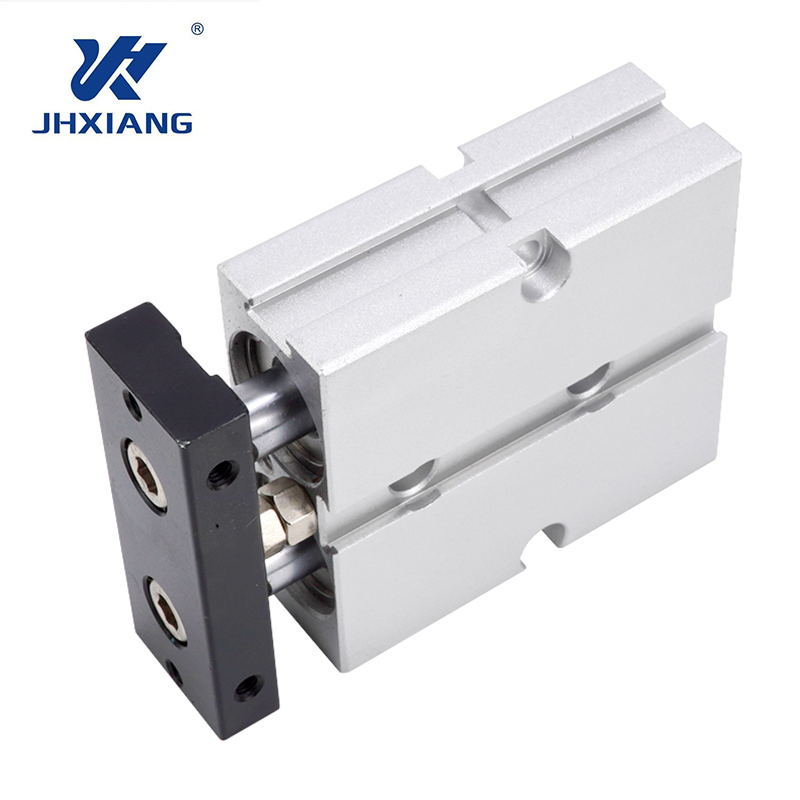

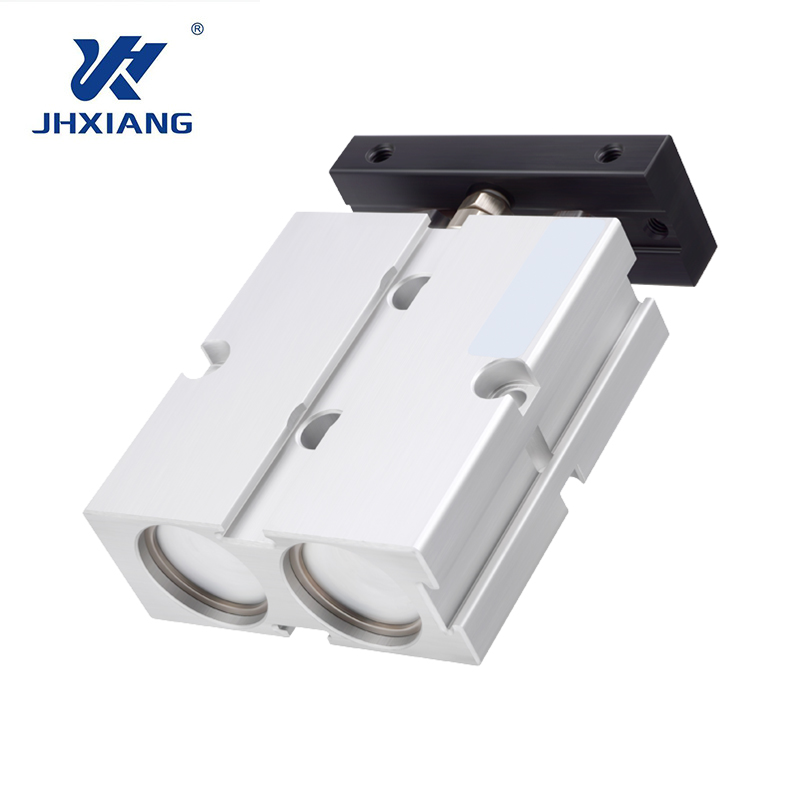

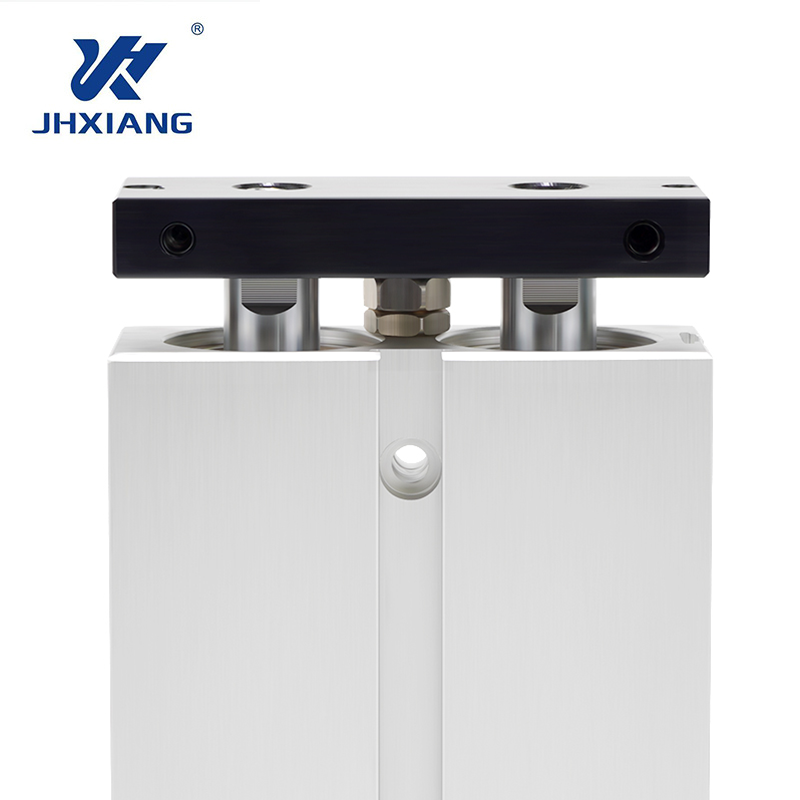

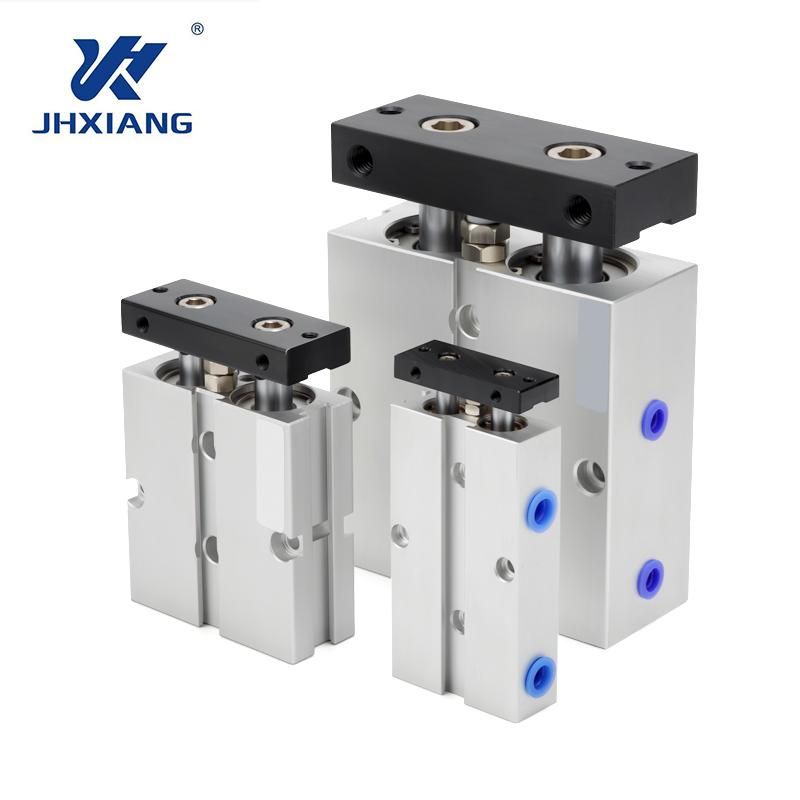

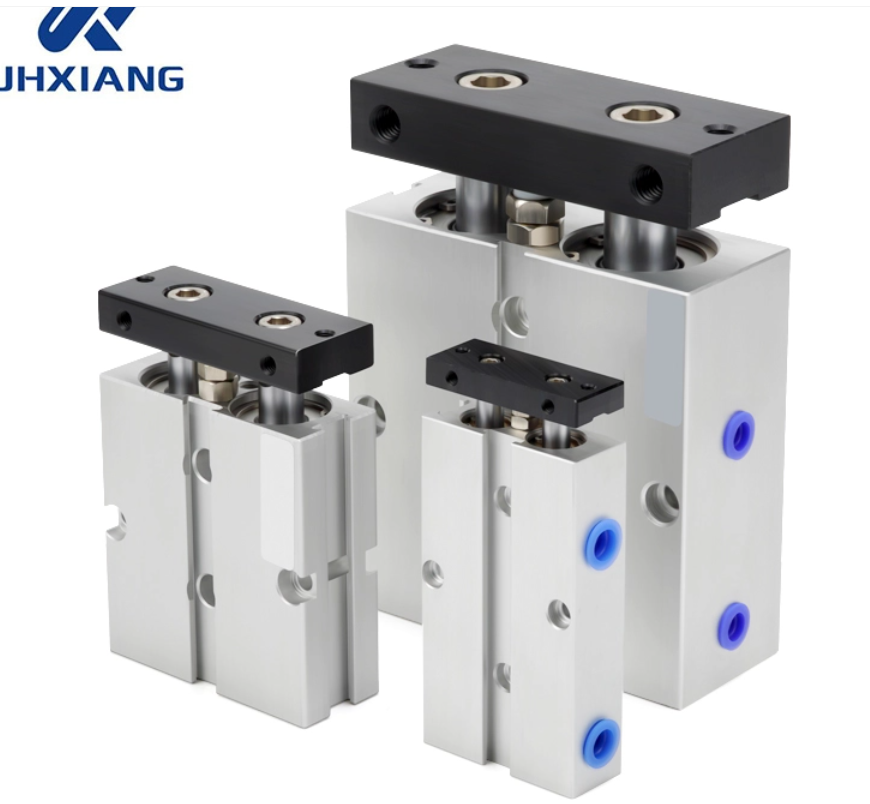

Our TN series dual axis pneumatic cylinder is a high-precision linear motion component, fully interchangeable with standard Airtac TN cylinders in terms of mounting dimensions, interface specifications and working performance. Designed for industrial automation manufacturers, engineering teams and equipment maintenance facilities, this product delivers stable thrust, zero radial rotation and long-lasting durability, perfect for precision positioning, clamping, transferring and pressing tasks in automated production lines.
Adopting a compact dual-rod structure, this cylinder operates efficiently under standard pneumatic pressure, with strong resistance to deflection and high repeat positioning accuracy. It suits long-term high-frequency operation in various industrial environments, helping enterprise production lines run smoothly and reduce equipment failure rates.
High Precision Non-Rotating Design: Dual piston rod structure eliminates radial rotation effectively, with a repeat positioning accuracy up to ±0.01mm, meeting the strict precision requirements of automated processing and assembly.
Double Acting Stable Operation: Standard double acting mode, smooth piston movement, balanced output force, stable performance under varying loads, no jamming during reciprocating motion.
Wide Pressure & Temperature Adaptability: Compatible with common industrial compressed air, works steadily within a wide temperature range, suitable for harsh workshop environments.
Durable Sealing & Long Service Life: Equipped with wear-resistant sealing parts, good air tightness, low friction loss, supporting long-term high-frequency use without air leakage.
Flexible Installation & Full Compatibility: Multiple mounting methods available, fully compatible with Airtac TN series cylinders, easy to replace old parts or integrate into new equipment without modification.
Compact Structure: Small footprint, lightweight, ideal for automated equipment with limited installation space.
Item | Parameter Details |
Action Type | Double Acting |
Operating Pressure Range | 0.15-1.0MPa |
Ambient & Fluid Temperature | -20℃ to 70℃ |
Piston Speed Range | 50-500mm/s |
Repeat Positioning Accuracy | ±0.01mm |
Cushion Type | Rubber Cushion (Standard) |
Lubrication | Lubrication-free Optional |

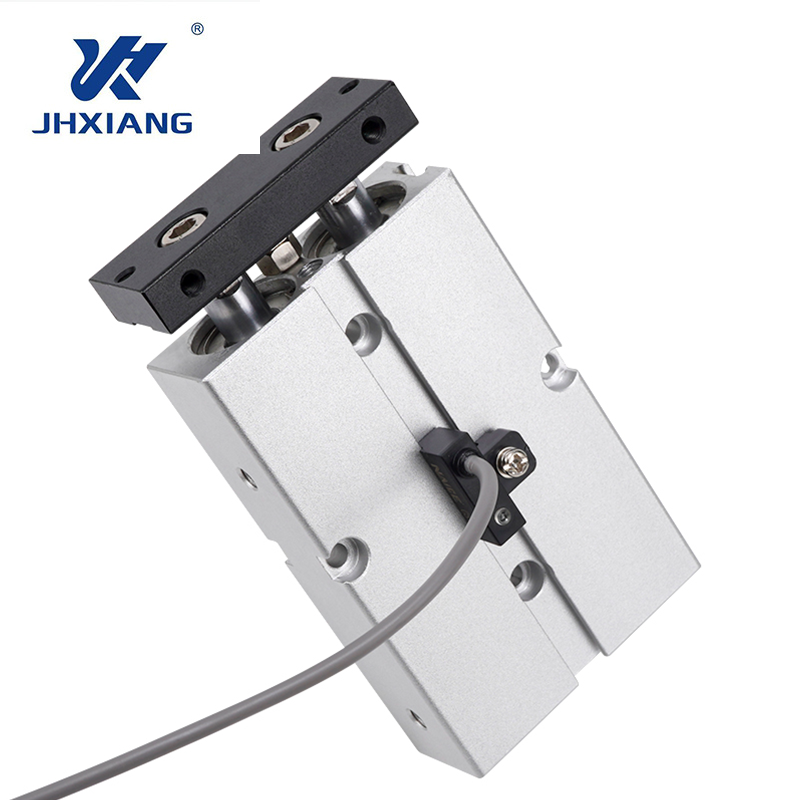

Magnetic Ring | Optional (for position sensing) |
Bore Size (mm) | Standard Stroke Range (mm) | Max Custom Stroke (mm) | Theoretical Output Force (N) @ 0.5MPa | Rod Diameter (mm) |
10 | 10-200 | 300 | 39 | 6 |
16 | 10-250 | 400 | 100 | 8 |
20 | 10-300 | 500 | 157 | 10 |
25 | 10-400 | 600 | 245 | 12 |
32 | 10-500 | 800 | 402 | 16 |
40 | 10-500 | 800 | 628 | 20 |
Every TN dual axis cylinder is made of premium industrial-grade materials, with refined processing technology to ensure stable performance and long service life:
Cylinder Body & End Caps: High-strength aluminum alloy with anodized surface, anti-corrosion, anti-rust, high rigidity, not easy to deform under long-term use.
Piston Rods: High-precision carbon steel with hard chrome plating, mirror polished, wear-resistant and scratch-resistant, keeping smooth operation for a long time.
Sealing Parts: Imported NBR sealing rings, anti-aging, low friction, perfect air tightness, suitable for long-term high-frequency operation.
Bearings & Bushings: Wear-resistant powder metallurgy bushings, self-lubricating, reducing rod wear and extending service life.
This TN series dual axis pneumatic cylinder is widely applied in various automated production scenarios, providing reliable linear motion support for industrial manufacturing and processing equipment:
Automated Assembly Lines: Precision parts assembly, electronic component insertion, screw locking and pressing stations
Material Handling Equipment: Workpiece transfer, clamping, lifting and positioning in conveying systems
Packaging Machinery: Carton sealing, labeling, film wrapping and fixed-length cutting equipment
CNC Machine Tools: Automatic loading and unloading, workpiece clamping and tool feeding mechanisms
Special Automation Equipment: Non-standard custom machines, new energy production lines, welding and printing equipment
All products pass strict factory inspections, including air tightness tests, life tests and performance calibration, ensuring qualified rate before delivery. We provide a 12-month warranty and lifelong technical support for industrial clients.
Besides standard models, we also accept customized orders to meet special working demands, including non-standard stroke customization, high-temperature resistant sealing parts modification, special mounting brackets and magnetic ring configuration. Our professional engineering team offers free selection guidance and technical solutions for bulk orders.
A: Yes, our TN dual axis cylinder has the same mounting dimensions, port size and performance parameters as standard Airtac TN cylinders, and can be directly replaced without any modification.
A: Definitely, we provide non-standard stroke customization services. You can contact our sales team with your required stroke and working conditions for a detailed quote.
A: Yes, we provide free 2D CAD drawings and 3D models for all standard models, which can be downloaded or sent upon request to help with equipment design and installation.
A: Standard models are in stock, with a lead time of 3-7 days; bulk custom orders usually take 7-15 days, depending on the order quantity and customization requirements.
A: Regularly check air tightness and clean the surface; keep the air source clean and dry to avoid impurities damaging the sealing parts. No extra lubrication is needed for standard models.
For industrial automation enterprises, equipment manufacturers and engineering teams looking for reliable dual axis pneumatic cylinders, our TN series product is the ideal replacement and matching component. Contact our sales team with your model requirements, quantity and application scenario, we will provide a detailed, no-obligation quote and professional technical support promptly.
