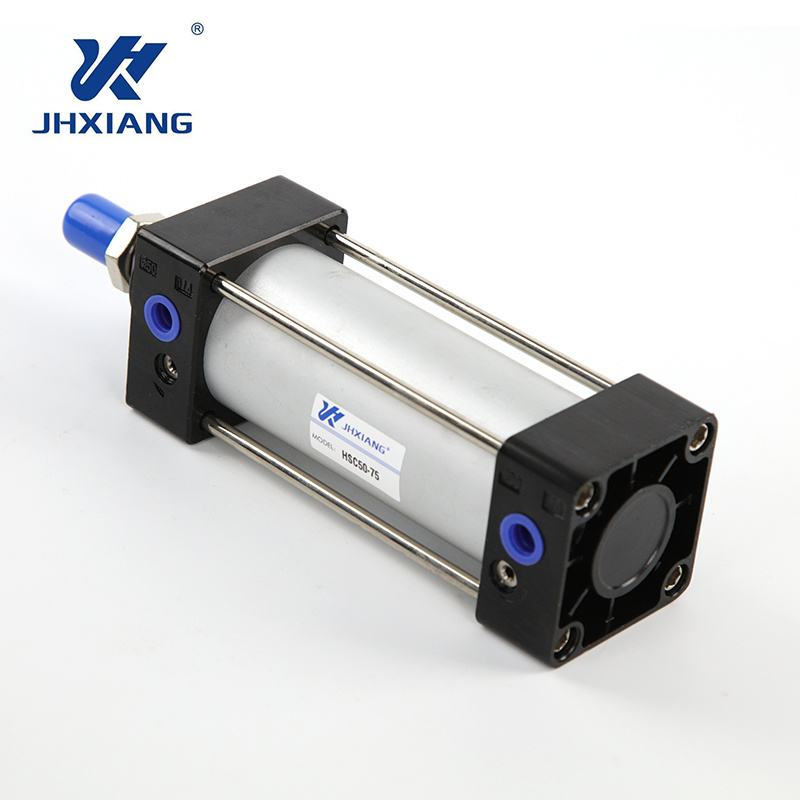

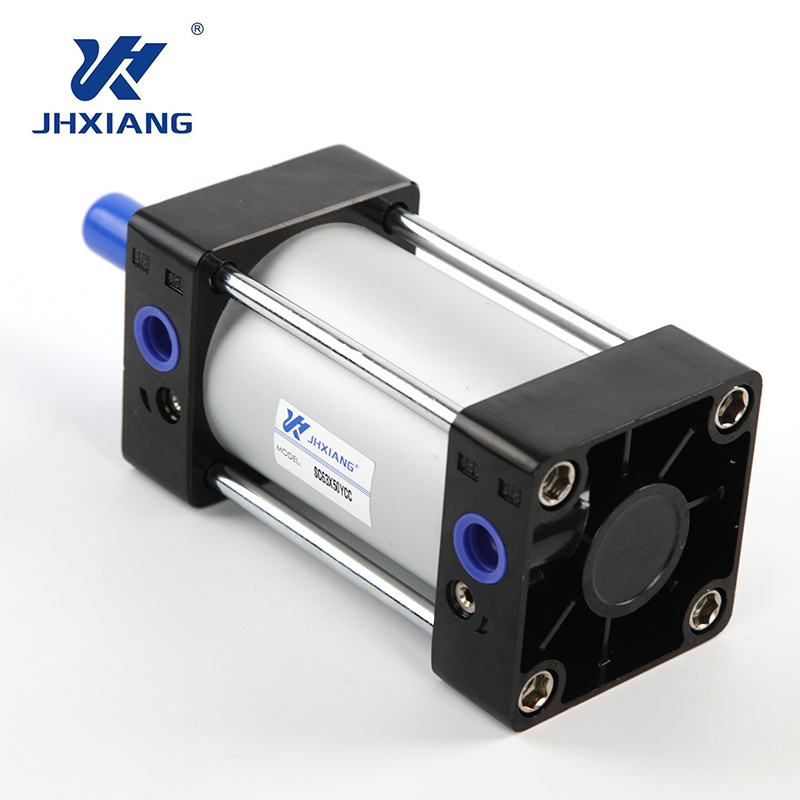

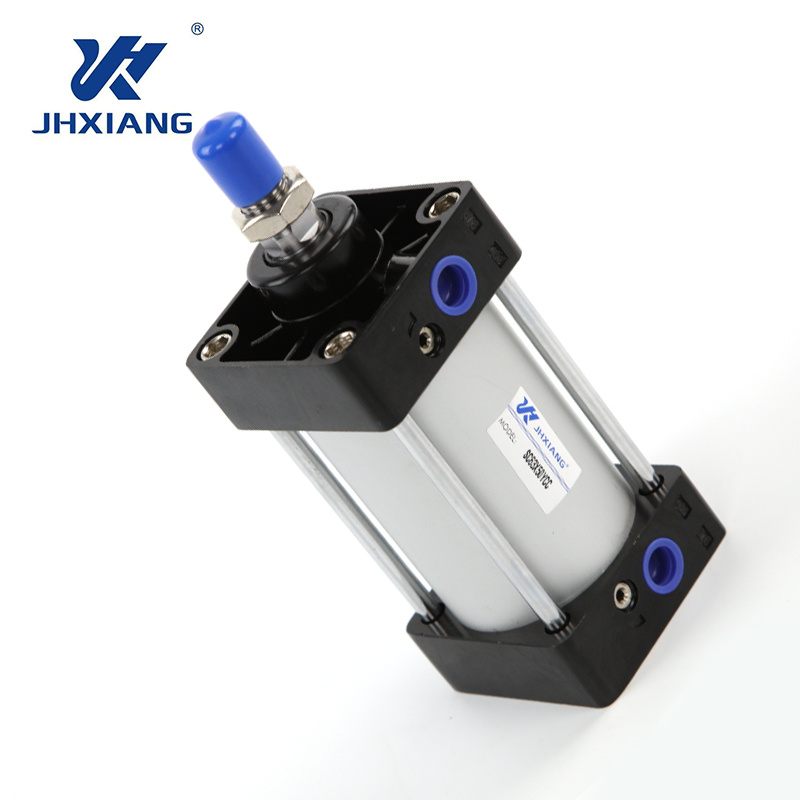

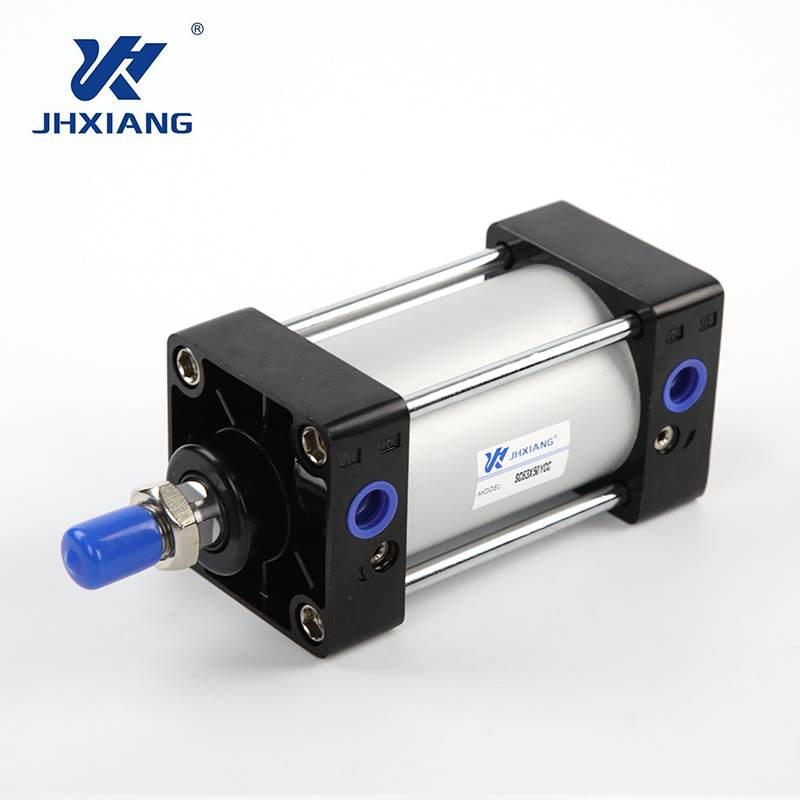

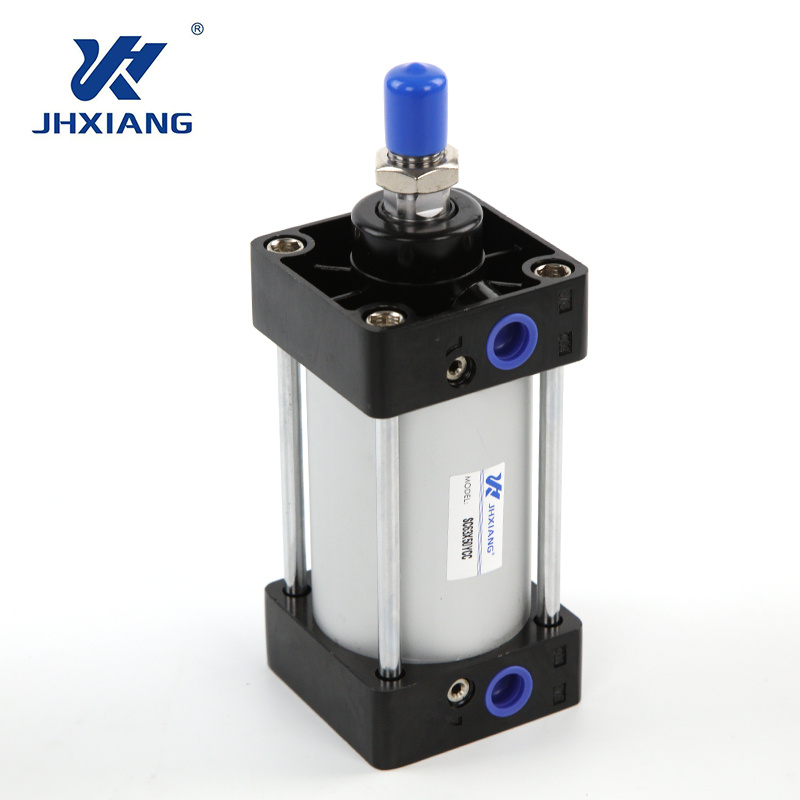

The SC Series Standard Pneumatic Cylinder is a heavy-duty industrial pneumatic actuator designed for medium and large-scale industrial applications. It adopts a classic tie-rod structure, with two air intake configurations: air tube end intake (SC-A type) and threaded end intake (SC-SL type). As a robust heavy duty pneumatic cylinder, it delivers large thrust, high impact resistance and ultra-long service life, providing reliable linear reciprocating drive solutions for heavy industrial scenarios. It is the preferred pneumatic component for heavy industrial plants, process manufacturing facilities and engineering service providers worldwide.
The heavy duty pneumatic cylinder uses 4 high-strength chrome-plated tie rods to connect the front and rear end caps, which increases the cylinder body rigidity by more than 30%. It can withstand greater radial loads and impact loads, with a maximum thrust of up to tens of thousands of Newtons, perfectly adapting to the driving needs of heavy-duty industrial working conditions.
This industrial pneumatic cylinder for harsh environments supports a working pressure range of 0.15-1.0MPa, and can operate stably in the temperature range of -20℃ to +70℃. It can be equipped with high-temperature, dust-proof and waterproof seal kits, adapting to harsh working conditions such as metallurgy, mining and chemical industry, with excellent protection performance.
Built-in adjustable air buffer and rubber buffer dual buffer structure, the buffer force can be adjusted according to working conditions. It effectively absorbs the impact energy at the end of the stroke, avoids metal collision, reduces equipment operating noise, and increases the reciprocating life of the cylinder to millions of cycles.
The mounting dimensions fully comply with the ISO 6431 international standard, and can be completely interchanged with cylinders of the same specification from mainstream global brands. The port specifications cover metric threads and inch pipe threads, adapting to pneumatic piping systems in different regions of the world, reducing equipment modification and replacement costs.
Cylinder Model | Thrust at 0.4MPa | Thrust at 0.5MPa | Thrust at 0.6MPa | Thrust at 0.7MPa |
SC32 | 20Kg | 25Kg | 35Kg | 40Kg |
SC40 | 32Kg | 40Kg | 50Kg | 60Kg |
SC50 | 50Kg | 60Kg | 80Kg | 95Kg |
SC63 | 80Kg | 100Kg | 125Kg | 150Kg |
SC80 | 130Kg | 160Kg | 200Kg | 240Kg |
SC100 | 200Kg | 250Kg | 315Kg | 375Kg |
SC125 | 315Kg | 390Kg | 490Kg | 590Kg |
The SC Series Standard Pneumatic Cylinder adopts a modular structure design, and all core components are made of high-end industrial-grade materials. The cylinder body is made of high-precision drawn aluminum alloy tube, with mirror honing treatment on the inner wall to reduce friction resistance. The piston rod is made of high carbon steel, which undergoes three processes: high-frequency quenching, hard chrome plating and precision polishing, with a surface hardness of over HV800. The sealing system adopts a combination of imported polyurethane (PU) and nitrile rubber (NBR) seals, with a double-lip main seal, which has both low friction and high sealing performance, no crawling phenomenon even under low-frequency operation.
This heavy duty industrial pneumatic actuator is widely used in medium and large-scale industrial scenarios with its heavy load performance and high reliability, including metallurgy and mining equipment, chemical and pharmaceutical production lines, engineering and agricultural machinery, building materials and ceramic production, and environmental protection water treatment equipment. It is suitable for heavy load, high impact and harsh environment working conditions.
Every SC Series Standard Pneumatic Cylinder is subject to strict full-process quality control in accordance with the ISO 9001 quality management system, from raw material incoming inspection to factory full performance testing. We provide comprehensive customization services for industrial customers, including non-standard stroke, special mounting flanges, high/low temperature/corrosion resistant versions, lock cylinders and multi-position cylinders. We also have a complete global supply chain and service system, providing fast delivery, bulk purchase discounts and lifetime technical support.
The standard stroke range is 50mm to 2000mm, and we can customize non-standard strokes up to 3000mm according to the specific needs of industrial customers.
Our standard product is double-acting type, and we can customize single-acting (spring return/spring extend) versions according to customer requirements to meet different control needs.
Under standard working conditions and regular maintenance, the service life can reach more than 3 million reciprocating cycles, and the heavy-duty version can reach more than 5 million cycles.
If you are searching for a durable SC Series Standard Pneumatic Cylinder for your heavy industrial projects or large-scale automation lines, we provide tailored solutions for manufacturing plants, engineering service providers and industrial system integrators. Reach out to us today for a free no-obligation quote, full product specification sheets and professional engineering support for your unique application requirements.
