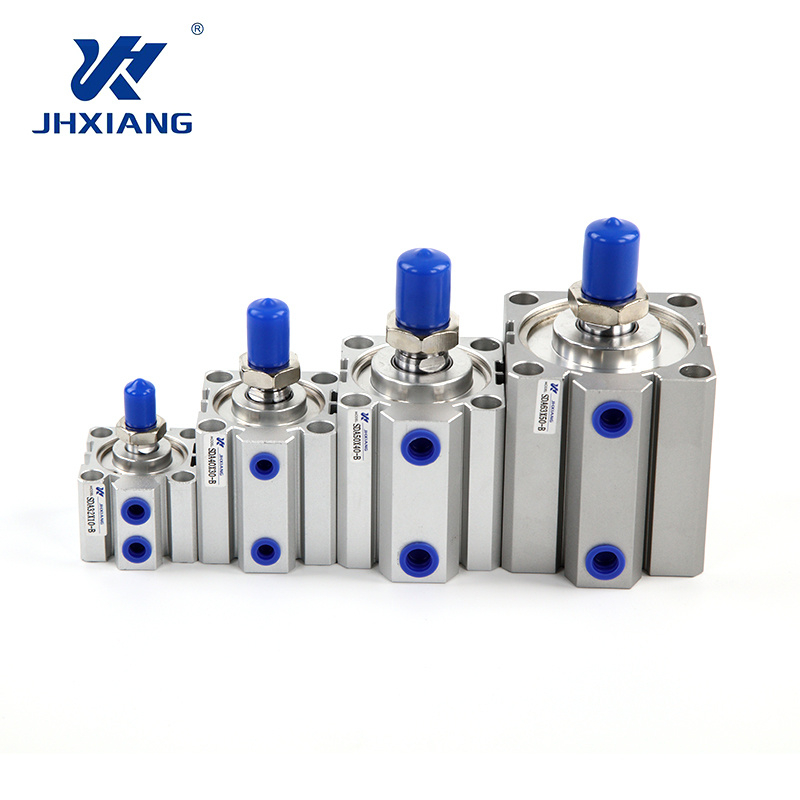

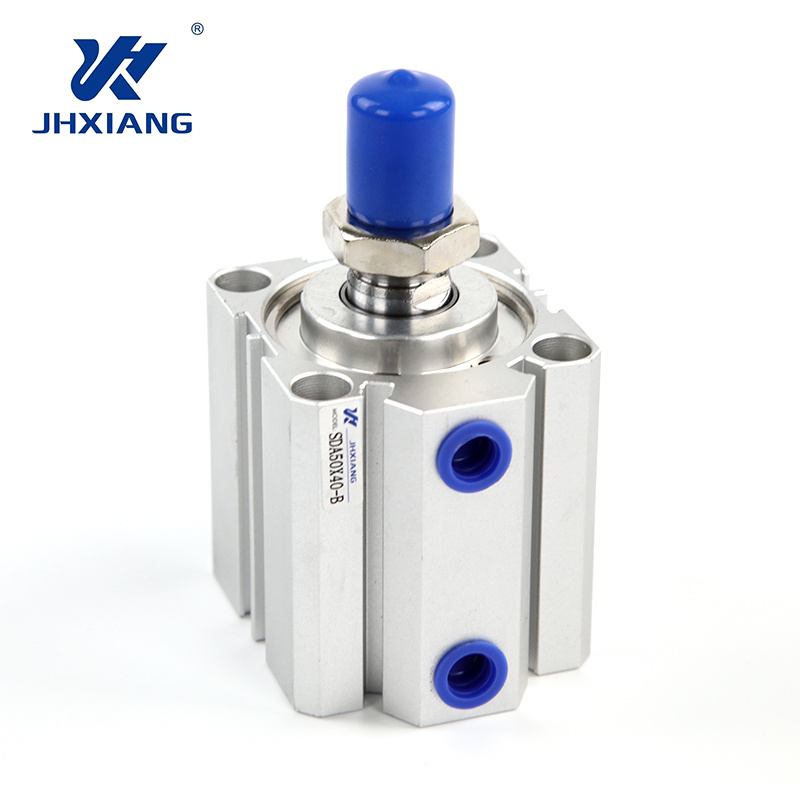

As a core component in pneumatic control systems, this short stroke compact air cylinder delivers reliable linear motion with an ultra-slim aluminum body design, making it the ideal choice for industrial manufacturers and machinery OEMs seeking to optimize equipment footprint without compromising power output. Designed to meet international pneumatic industry standards, this cylinder seamlessly integrates into existing pneumatic circuits, supporting both double-acting and single-acting operation modes for diverse application requirements.
The aluminum body compact pneumatic cylinder features an integrated short-stroke structure, reducing overall installation length by up to 50% compared to standard pneumatic cylinders. This design enables flexible mounting in tight equipment spaces, a critical advantage for compact automation machinery and multi-station assembly lines.
With a rated operating pressure range of 0.1-0.7MPa, this short stroke pneumatic cylinder delivers consistent linear thrust across all bore sizes. It supports a maximum operating frequency of 120 cycles per minute (c.p.m), with ±0.01mm repeatability to ensure precise positioning in high-speed automation processes.
Hard anodized aluminum alloy body provides excellent wear and corrosion resistance for harsh industrial environments. The cylinder supports lubrication-free operation, eliminating regular oil maintenance and reducing downtime in continuous production lines.
Built-in magnetic ring options are available for position detection with industry-standard magnetic switches. The cylinder is compatible with a full range of mounting accessories, including flange, foot, and pivot mounts, to adapt to various installation scenarios.
Parameter | Specification Details |
Bore Size (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
Action Type | Double Acting / Single Acting |
Operating Pressure Range | 0.1-0.7MPa |
Ambient & Fluid Temperature | -10℃ to +60℃ (no freezing) |
Cushion Type | Rubber bumper cushion |
Port Size | M5×0.8, Rc1/8, Rc1/4 |
Repeatability | ±0.01mm |
Max. Operating Frequency | 120 c.p.m |
Lubrication | Not required |
The SDA short stroke compact cylinder is built with premium industrial-grade materials for long service life. The main body and end caps use high-strength die-cast aluminum alloy with hard anodizing for enhanced surface hardness. The piston rod is made of S45C carbon steel with hard chrome plating, delivering superior wear resistance and smooth motion. High-performance NBR seals ensure excellent air tightness and oil resistance, while the PTFE wear ring reduces friction and extends service life. Optional built-in rare earth magnetic rings ensure stable signal transmission for position sensing.
This aluminum body short stroke cylinder is widely used across automated assembly lines, electronic component manufacturing equipment, food and beverage packaging machinery, material handling systems, injection molding auxiliary equipment, medical device production lines, and printing machinery. It is the preferred pneumatic actuator for automation system integrators and industrial equipment manufacturers requiring reliable, space-saving linear motion solutions.
Every SDA compact cylinder undergoes rigorous pressure testing, leakage inspection, and performance verification before shipment, adhering to strict ISO quality management standards. We offer a 12-month warranty for all standard products, with comprehensive after-sales technical support. Customization services cover special stroke requirements, non-standard mounting dimensions, corrosion-resistant coatings, and explosion-proof configurations. Our engineering team provides professional selection guidance for optimal product matching.
What mounting accessories are compatible with the SDA short stroke compact cylinder?
We offer a full range of standard mounting accessories, including front flange, rear flange, foot mounting, clevis mounting, and pivot brackets, all compatible with industry-standard mounting dimensions for easy integration.
Can this cylinder be used in dusty industrial environments?
Yes, the cylinder is equipped with dust-proof wiper seals on the rod end to prevent particulate ingress, making it suitable for dusty, high-humidity, and general industrial working conditions.
Is the magnetic ring included as standard?
The built-in magnetic ring is an optional configuration. We can equip the cylinder with a magnetic ring to support position detection with D-M9 series magnetic switches based on your project requirements.
Are you looking for a reliable short stroke compact pneumatic cylinder for your industrial automation projects? Contact us today to get a free, no-obligation quote, custom engineering support, and detailed product datasheets. Our team is ready to provide tailored pneumatic solutions to match your specific industrial application needs, with flexible MOQ options and fast global delivery.
