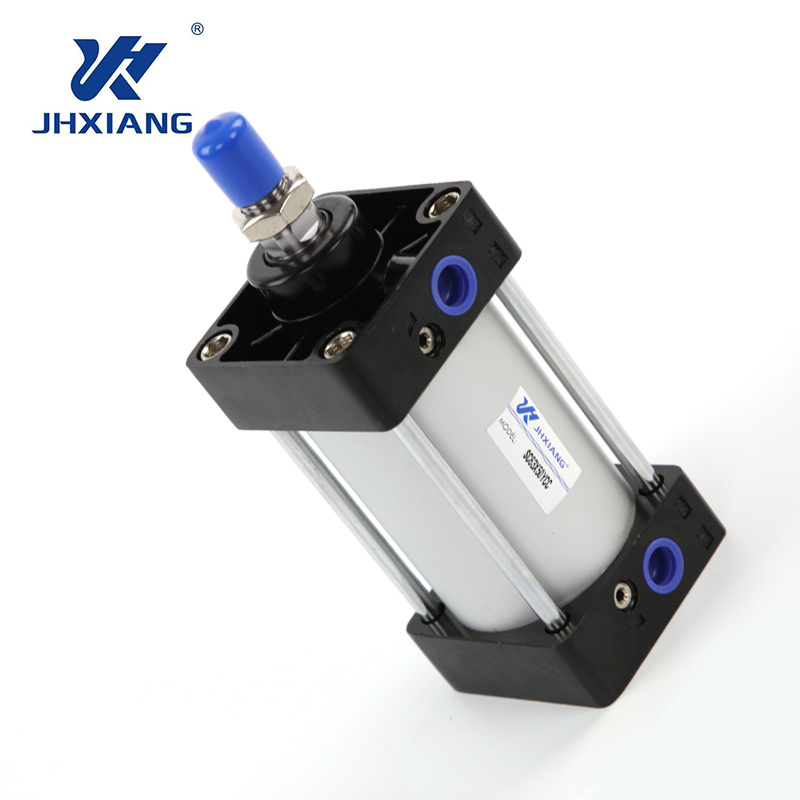

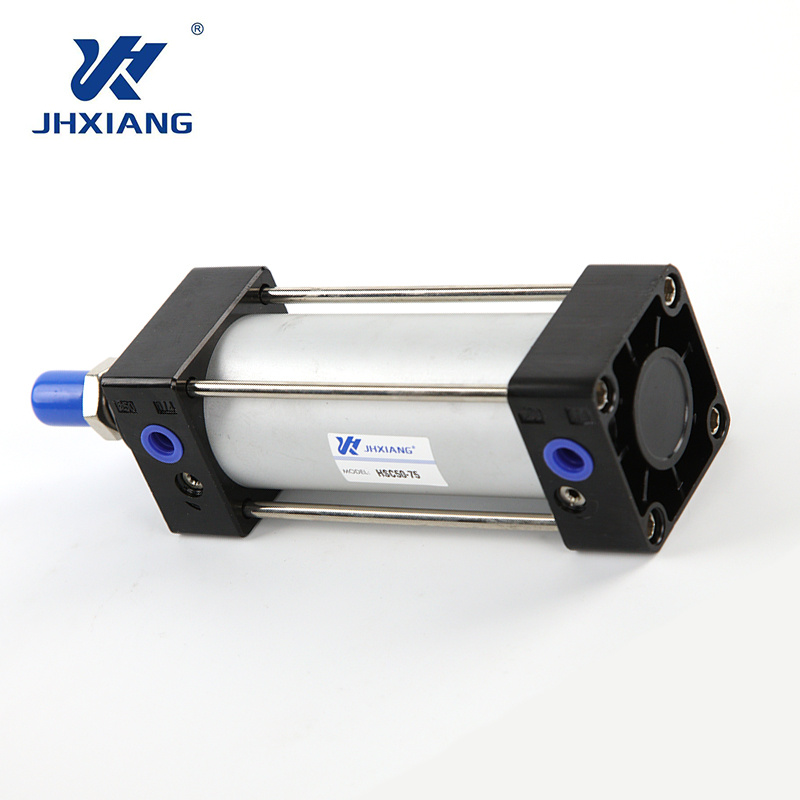

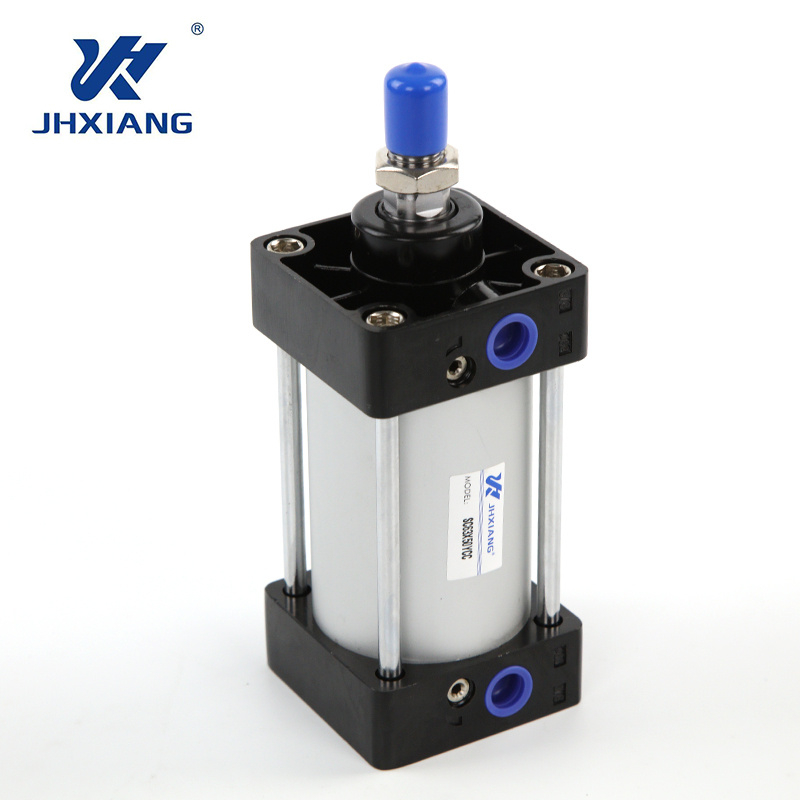

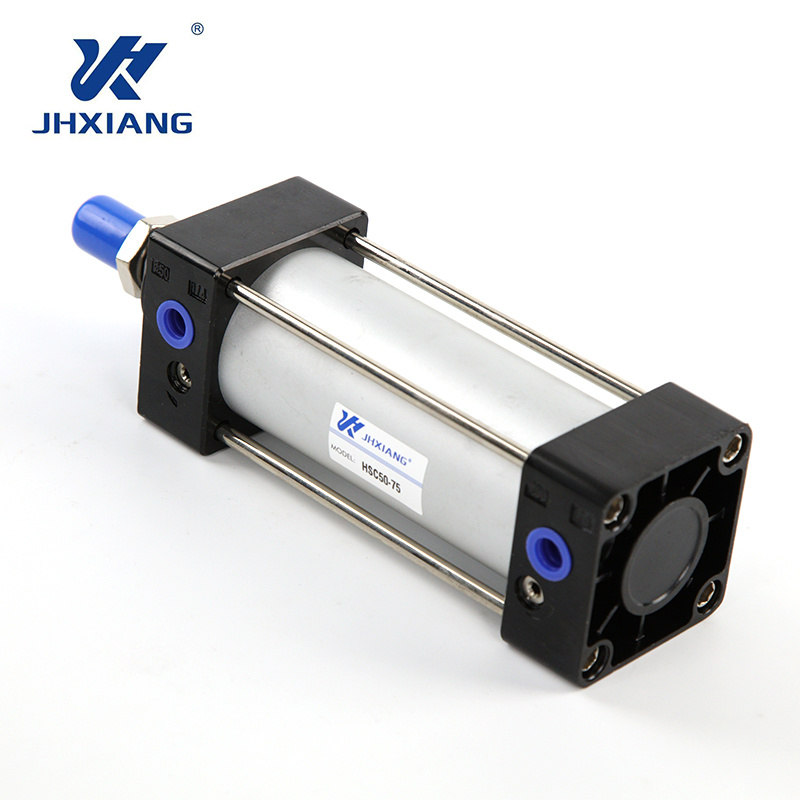

As a premium double acting pneumatic cylinder, it adopts a compact round body design with threaded end air intake (SC/SL type), fully complying with universal industrial installation standards. This series delivers stable and reliable reciprocating linear motion for various automation equipment, making it the core pneumatic component of choice for automation equipment manufacturers, production line integrators and machinery builders. It can be directly interchanged with mainstream products of the same specification on the market, without additional equipment modification.
As an ISO standard pneumatic cylinder, this series features a precision-machined round cylinder body with universal mounting dimensions. Its compact structure saves installation space, and is perfectly compatible with most industrial pneumatic control systems, greatly reducing the difficulty of equipment integration and replacement.
The double acting pneumatic actuator provides stable bidirectional driving force for extension and retraction. It supports a working pressure range of 0.1-1.0MPa, with a piston speed of 50-500mm/s, adapting to different load and speed requirements. The repeat positioning accuracy can reach ±0.01mm, fully meeting the high-precision operation needs of automated production.
The cylinder body and end caps are made of high-strength aluminum alloy, and the piston rod is treated with hard chrome plating for excellent wear and corrosion resistance. Built-in high-quality NBR seals maintain stable sealing performance in the temperature range of -10℃ to +60℃. It adopts a lubrication-free design, no additional oil supply is required during normal use, which greatly reduces maintenance costs and extends service life.
Model | Bore Size (mm) | Port Size | Operating Pressure (MPa) | Ambient Temperature (℃) | Piston Speed (mm/s) | Action Type |
SC4-M5 | 4 | M3×0.5 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
SC6-M5 | 6 | M5×0.8 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
SC8-02 | 8 | Rc1/4 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
SC10-02 | 10 | Rc1/4 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
SC12-03 | 12 | Rc3/8 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
SC16-04 | 16 | Rc1/2 | 0.1-1.0 | -10~+60 | 50-500 | Double Acting |
The SC Series Round Pneumatic Cylinder consists of a precision die-cast aluminum alloy cylinder body, hard chrome-plated piston rod, front and rear end caps, piston assembly, guide sleeve and high-performance sealing system. The integrated die-cast end caps integrate air inlets and rubber buffer structure, which effectively absorbs the impact at the end of the stroke and reduces equipment operating noise. The dual-seal design of piston seal and rod dust seal prevents dust and impurities from entering the cylinder body, ensuring zero internal leakage even under high-frequency operation.
This high precision pneumatic cylinder is widely used in core industrial automation scenarios, including automated packaging machinery, electronic manufacturing SMT equipment, food processing production lines, injection molding auxiliary equipment, and automotive parts assembly lines. It is suitable for material handling, fixture clamping, positioning and pushing actions in various automated processes.
All SC Series Pneumatic Cylinder products have undergone strict factory performance tests, including pressure resistance test, leakage test and reciprocating life test, to ensure compliance with design standards. We provide comprehensive customization services, including special stroke, non-standard mounting dimensions, magnetic ring induction type and high-temperature seal versions. Our professional technical team provides one-on-one selection guidance, installation support and after-sales service for all industrial customers.
Under standard working conditions, the maximum operating frequency can reach 120 cycles per minute (c.p.m), which fully meets the needs of high-speed automated production lines.
Yes, all models support built-in magnetic ring design, and can be matched with contact and non-contact magnetic switches to realize real-time position feedback and automatic control.
This series adopts a lubrication-free design with built-in self-lubricating seals. No additional oil supply is required during normal use, reducing daily maintenance work.
Are you looking for a reliable SC Series Standard Round Pneumatic Cylinder for your automation equipment? We offer competitive bulk pricing for manufacturing enterprises, automation system integrators and industrial equipment builders. Contact us today to get a free customized quote, detailed product datasheet and professional technical support for your specific application needs.
