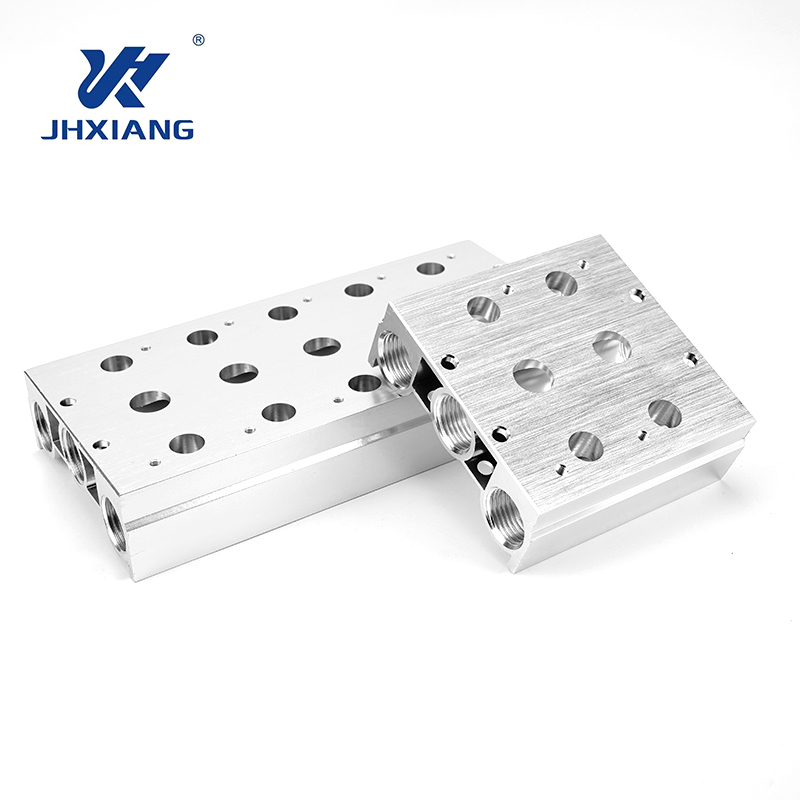

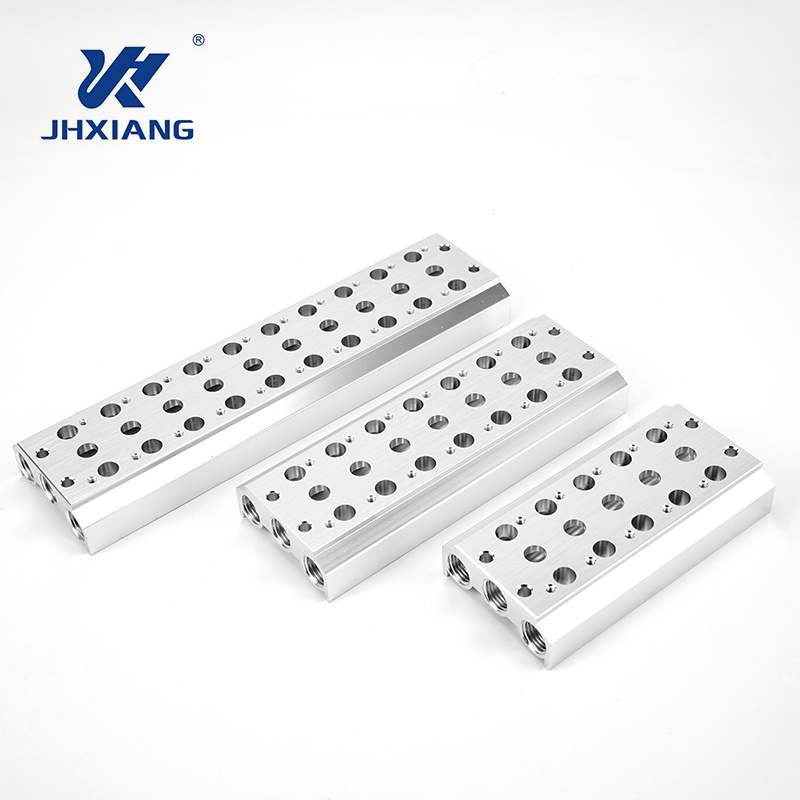

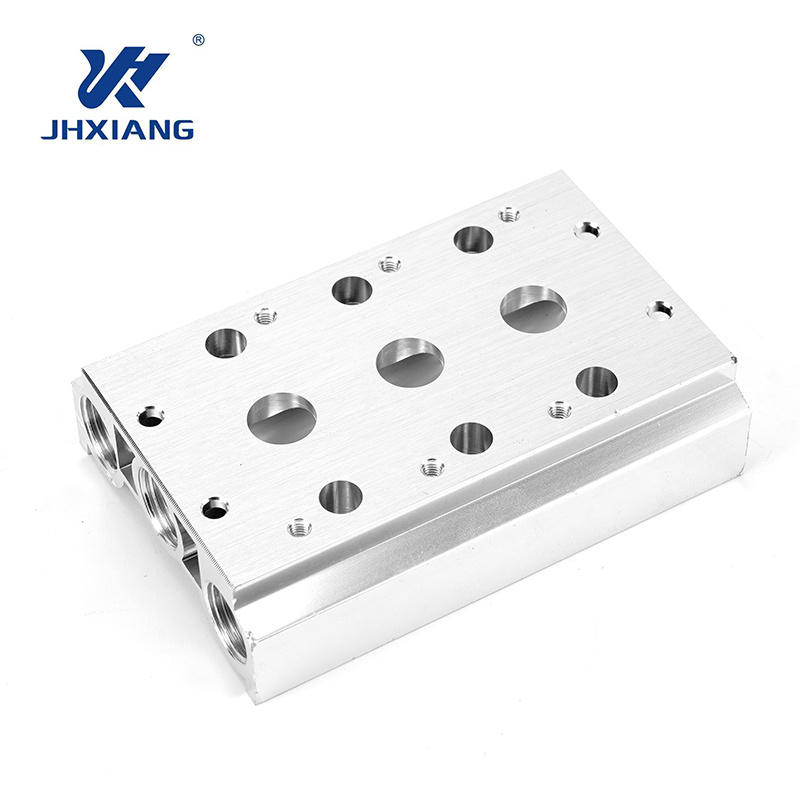

Engineered for automation equipment manufacturers and pneumatic system designers, this air exhaust plate for solenoid valves simplifies pneumatic circuit design, reduces air line connections, minimizes air leakage, and improves the overall efficiency and stability of your automated systems. Compatible with mainstream 4V, 4A, and JM series solenoid valves, our manifold baseboards deliver unmatched flexibility for factory automation applications.

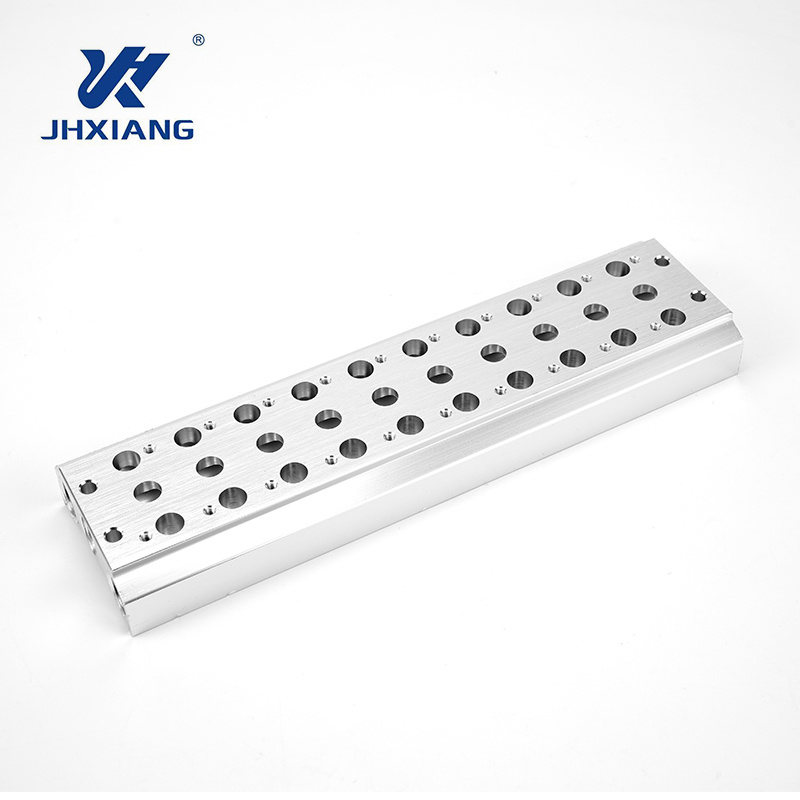

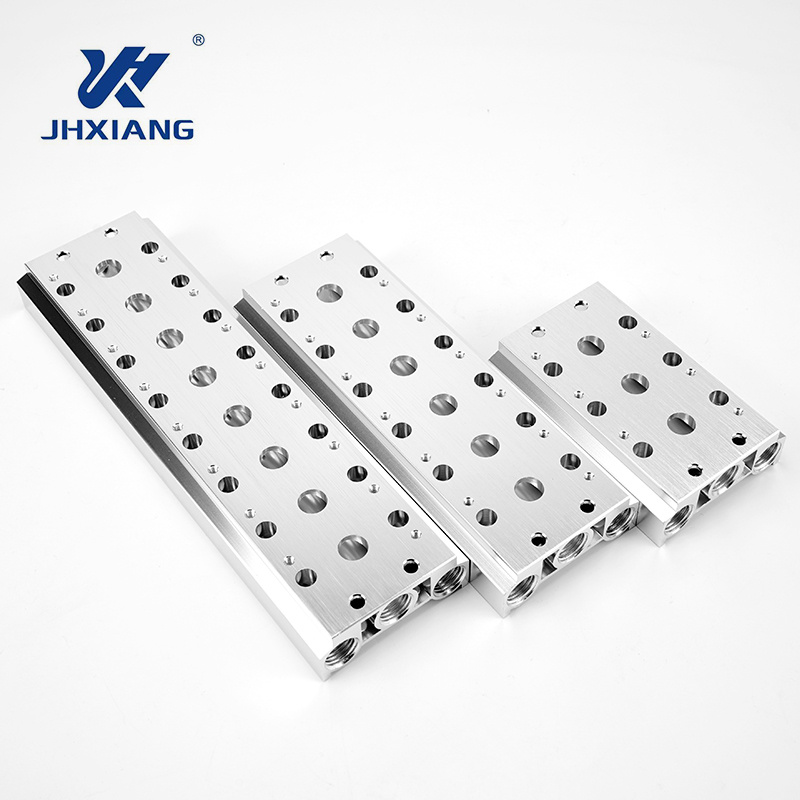

The pneumatic valve manifold block features a fully modular structure, allowing flexible configuration of 2 to 24 valve stations to match your exact system requirements. The integrated air inlet and exhaust ports eliminate the need for complex individual tubing, reducing installation time by up to 70% and minimizing the risk of air leaks in your pneumatic circuit.
Precision CNC machined internal flow channels ensure optimized air flow with minimal pressure drop, maintaining consistent actuator response times even in multi-valve simultaneous operation. High-performance NBR sealing gaskets are included for each valve station, delivering zero air leakage under working pressures up to 1.0MPa, critical for continuous industrial operation.

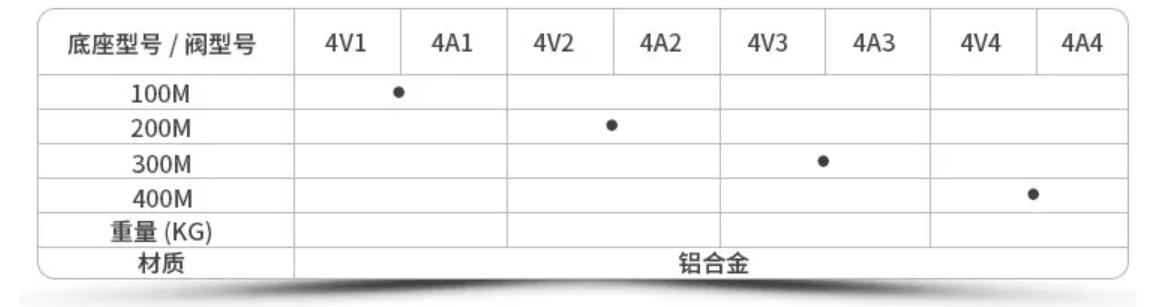

Our industrial solenoid valve mounting base is fully compatible with standard 4V100, 4V200, 4V300, and 4V400 series solenoid valves, as well as most mainstream pneumatic valve brands on the market. We offer custom inlet/exhaust port positions, side or bottom porting, and special mounting hole configurations to fit your unique equipment design.

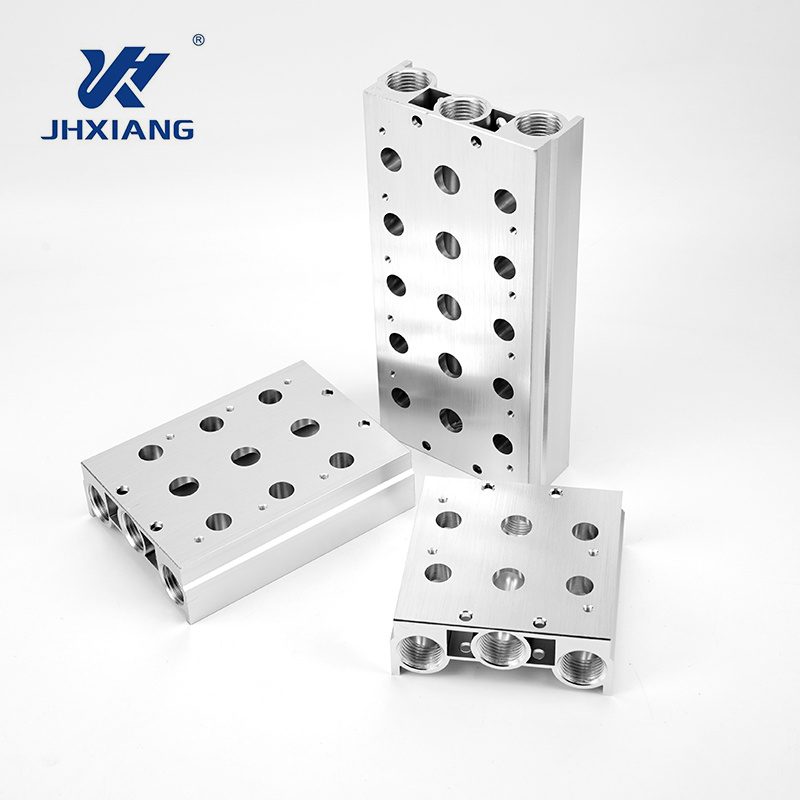

Manufactured from high-density ADC12 die-cast aluminum alloy, the manifold baseboard undergoes hard anodic oxidation surface treatment, providing excellent wear resistance and corrosion protection for harsh industrial environments. The high-precision machining ensures perfect alignment with solenoid valve mounting holes, eliminating installation stress and extending valve service life.
The solenoid valve manifold exhaust plate features a monoblock aluminum alloy body with precision-machined internal air channels, ensuring uniform air distribution across all valve stations. The main body is made of high-strength ADC12 aluminum alloy with a 12μm hard anodic oxidation coating, delivering superior scratch and corrosion resistance. All sealing components are made of oil-resistant NBR rubber, with stainless steel mounting screws included for long-term durability in industrial environments.

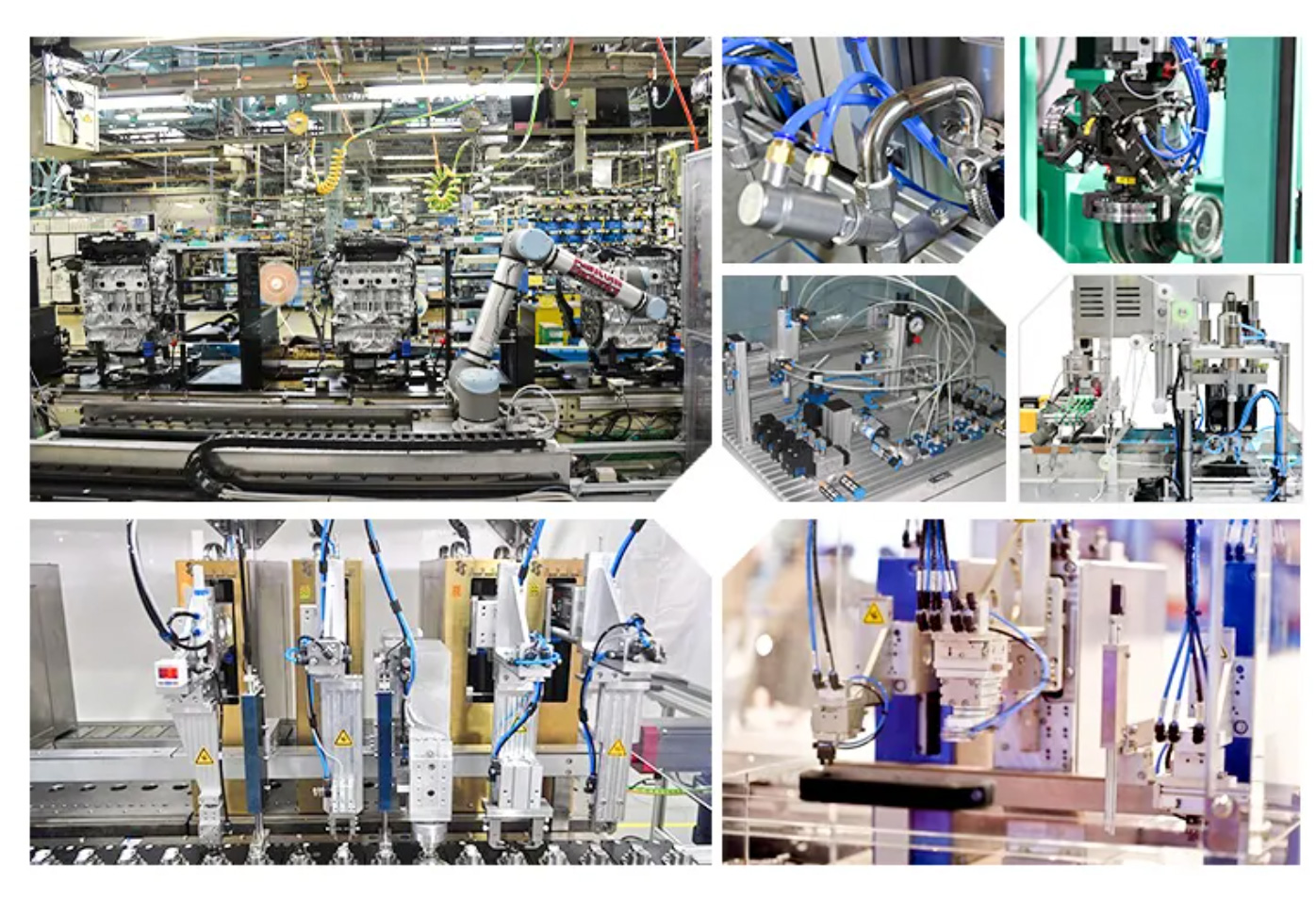

Our pneumatic solenoid valve manifold baseboard is an essential component for a wide range of industrial equipment, including automated packaging and filling machinery, injection molding equipment, robotic end-of-arm tooling and pick-and-place systems, printing and paper converting machinery, pharmaceutical filling lines, and material handling conveyor systems.
Every manifold baseboard undergoes 100% air tightness testing under 1.2MPa pressure, dimensional accuracy inspection, and flow performance testing before shipment, adhering to strict ISO 9001 quality standards. We provide end-to-end custom support for automation solution providers, including custom station counts, port specifications, material upgrades, and OEM branding to meet your unique project needs.
We offer custom configurations from 2 up to 24 stations for 4V200 series valves, and up to 10 stations for larger 4V400 series valves, with non-standard station counts available on request.
Yes, we can custom machine the mounting hole pattern and flow channels to match almost any solenoid valve brand and model, with full compatibility testing provided before delivery.
Our standard hard anodic oxidation is suitable for most industrial environments, with optional electroless nickel plating available for highly corrosive or marine applications.
Need a custom pneumatic solenoid valve manifold baseboard for your automation equipment? Reach out to our engineering and sales team today for a free, no-obligation quote, 3D CAD drawings, and sample testing support for your industrial projects.
