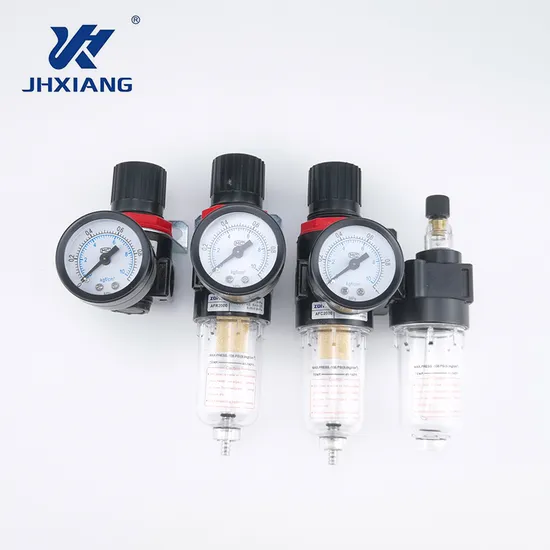

Designed for industrial automation professionals and manufacturing enterprises, this pneumatic air treatment unit delivers stable, clean, and properly lubricated compressed air to downstream pneumatic components, effectively extending the service life of cylinders, solenoid valves, and actuators while minimizing system downtime and maintenance costs. Available in multiple series including AC, AFR, GFR, and GFC, our processors are engineered to meet the diverse demands of continuous industrial operations.
Equipped with a high-sensitivity diaphragm pressure regulating valve, our industrial air filter regulator lubricator delivers stable pressure control with an adjustment accuracy of ±0.01MPa, ensuring consistent pneumatic system performance even under fluctuating inlet pressure and load conditions.

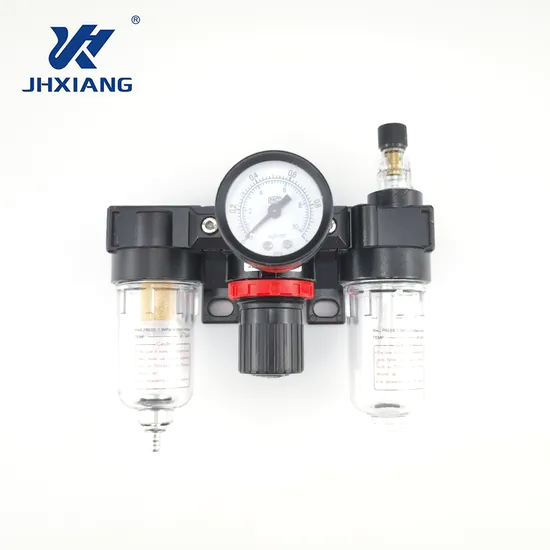

The unit combines a high-efficiency air filter, precision pressure regulator, and automatic oil mist lubricator in one assembly. The filter removes solid particles, water, and oil contaminants from compressed air, while the lubricator delivers precise oil mist to moving parts, reducing friction and wear in pneumatic components.
The main body adopts high-strength die-cast aluminum alloy with anodic oxidation surface treatment, providing excellent corrosion resistance for harsh industrial environments. High-performance NBR seals ensure long-term air tightness and zero leakage, even in continuous 24/7 operation.
The modular design allows for flexible mounting and quick disassembly, with a transparent filter bowl for real-time visual inspection of contamination levels. Replacement of filter elements and seals can be completed in minutes, reducing maintenance time for factory operations.
Product Parameter | |
Proof pressure | 1.5Mpa(213Psi) |
Max.working pressure | 0.95Mpa(135Psi) |
Environmental and fluid temperature | 5~60℃ |
Filteraperture | 40μm |
Suggested oil usage | Turbine No.1 oil(ISOVG32) |
Cupmaterial | Polycarbonate |
Filterwater cup capacity | AFC1500~AFC2000:15CC |
Cuphood | AFC1500-AFC2000:No |

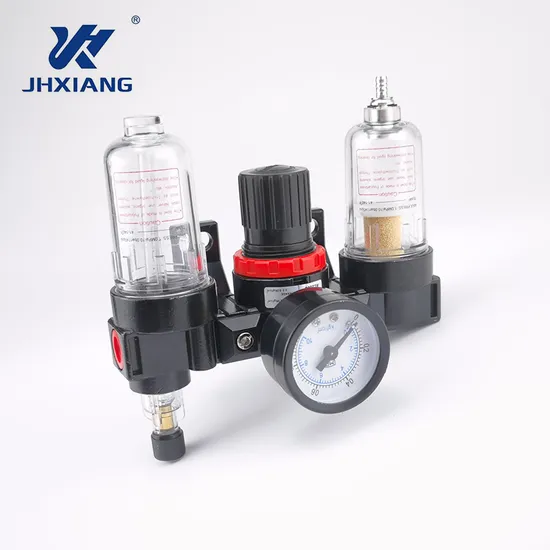

The compressed air source treatment assembly features a robust three-stage structure: a filtration chamber, pressure regulation chamber, and lubrication chamber. The main body is manufactured from high-density ADC12 aluminum alloy, with a stainless steel filter element for superior contaminant removal. The pressure regulating valve uses a copper alloy valve core for wear resistance, while all sealing components are made of oil-resistant NBR rubber, ensuring reliable performance in temperatures ranging from -10℃ to +60℃.
Our precision regulating air source processor is widely used across industrial sectors including automated assembly lines, automotive manufacturing equipment, food and beverage packaging machinery, electronic semiconductor production lines, textile and printing machinery, and pharmaceutical device manufacturing.
All our air source processors undergo strict air tightness testing, pressure cycle testing, and performance calibration before delivery, complying with ISO 9001 quality standards. We offer comprehensive custom support for industrial buyers, including custom port sizes, pressure adjustment ranges, filtration accuracy, and OEM/ODM branding services to match your specific system requirements.
Under normal industrial operating conditions, we recommend replacing the filter element every 6 months, or immediately if visible heavy contamination is observed in the filter bowl.
Yes, we offer food-grade stainless steel filter bowl options and food-safe sealing materials for food and beverage industry applications, compliant with relevant food safety standards.
The standard unit has a proof pressure of 1.5MPa, with custom high-pressure models available for specialized industrial requirements.
Are you looking for a reliable precision regulating air source processor for your industrial pneumatic system? Contact our technical sales team today to get a free custom quote, detailed product datasheets, and sample testing support for your manufacturing operations.
