Each industrial pneumatic tube fitting is engineered through tight-tolerance machining, ensuring a precise structural integration that completely eliminates compressed air loss. Built with a solid all-brass and stainless steel reinforced framework, these connectors comfortably withstand peak fluctuating pressures up to 1.0MPa. This robust metal construction prevents the micro-cracking and seal deformation frequently observed in standard plastic alternatives under heavy load. When operators insert the tubing, the precision collet delivers an audible, firm snap, confirming a secure lock that prevents accidental disconnection even in environments characterized by continuous, heavy mechanical vibration.
To accommodate complex routing requirements, we provide a comprehensive portfolio of brass pneumatic hose fitting configurations, encompassing straight, elbow, tee, cross, and bulkhead geometries. These are paired with extensive thread standard options including metric, PT, NPT, and G profiles. Beyond thread variety, the internal locking mechanism is calibrated to perfectly accommodate multiple tubing materials, including Polyurethane (PU), Nylon (PA), and Polytetrafluoroethylene (PTFE). This strict dimensional control prevents slipping and hidden air leaks caused by mismatched diameters or long-term tube aging, streamlining your system assembly without the need for cumbersome custom adapters.
Constructed from heavy-duty forged brass and 304 stainless steel components, our stainless steel pneumatic quick connect fitting is specifically treated to resist aggressive environmental factors. The smooth, nickel-plated exterior not only provides a clean, professional appearance but actively repels industrial dust, chemical vapors, and moisture. Operating reliably across a broad thermal range from -20℃ to 70℃, these connectors maintain their structural integrity during frequent washdowns, making them highly effective for demanding manufacturing, pharmaceutical, and heavy industrial processing facilities.
The intuitive push-to-connect architecture facilitates immediate, tool-free installation, effectively reducing manual assembly time by over 60% across large-scale production lines. Designed specifically for scenarios requiring frequent line changes, the internal industrial-grade stainless steel locking claws and high-elasticity NBR seals maintain their original airtight integrity even after hundreds of insertion and extraction cycles. This detachable convenience simplifies routine system maintenance and rapid tubing replacements, directly translating to minimized equipment downtime and sustained operational efficiency.
Category | Sub-category | Full Specification Details |
Model Nomenclature | Standard Order Model | PC 12 - 01 (Structure: Basic Model Code PC - Tube Size Code - Thread Specification Code) |
Tube Size Specifications | Metric Tube Size | Tube Size Code: 4 / 6 / 8 / 10 / 12 / 16 Corresponding Outer Diameter: ø4mm / ø6mm / ø8mm / ø10mm / ø12mm / ø16mm |
Inch Tube Size | Tube Size Code: 5/32" / 3/16" / 1/4" / 5/16" / 3/8" / 1/2" Corresponding Outer Diameter: ø3.96mm / ø4.76mm / ø6.35mm / ø7.94mm / ø9.53mm / ø12.7mm | |
Thread Specifications | 55° Taper Thread (R) | Thread Code: 01 / 02 / 03 / 04 / 06 Corresponding Thread: R1/8 / R1/4 / R3/8 / R1/2 / R3/4 |
Metric Straight Thread | Thread Code: M3 / M5 / M6 Corresponding Thread: M3×0.5 / M5×0.8 / M6×1.0 | |
55° Straight Pipe Thread (G) | Thread Code: G01 / G02 / G03 / G04 / G06 Corresponding Thread: G1/8 / G1/4 / G3/8 / G1/2 / G3/4 | |
60° American Thread (UNF & NPT) | Thread Code: N01 / N02 / N03 / N04 / N06 / N08 Corresponding Thread: 10-32UNF / NPT1/8 / NPT1/4 / NPT3/8 / NPT1/2 / NPT3/4 | |
Core Material & Performance | Main Body | High-strength metal material, with excellent pressure resistance, corrosion resistance and impact resistance |
Internal Functional Components | Equipped with high-quality stainless steel snap spring and NBR nitrile sealing ring, stable clamping force, reliable sealing, suitable for long-term high-frequency pneumatic system operation | |
Applicable Scenarios | Adapt to harsh industrial working conditions with higher requirements for strength, durability and load-bearing capacity |
The metal pneumatic fitting is engineered around a highly optimized 4-core structure designed to prevent premature wear and system failure. It begins with a weighty, precision-machined main body forged from lead-free brass, coated with a protective nickel plating that feels smooth to the touch while actively resisting oxidation. Inside, a heavy-duty stainless steel locking collet grips the tubing evenly without scoring the surface. This is backed by a high-elasticity, food-grade NBR sealing O-ring that maintains its pliable nature over time, preventing the hardening and cracking that leads to slow air leaks. The threaded locking component ensures a secure bite into the receiving port. Every single unit undergoes rigorous 100% pressure and leakage testing before leaving the facility, guaranteeing that your industrial applications receive consistent, reliable performance from day one.
Our metric push to connect pneumatic fitting solutions are specifically deployed to resolve fluid and air control challenges across multiple demanding sectors:

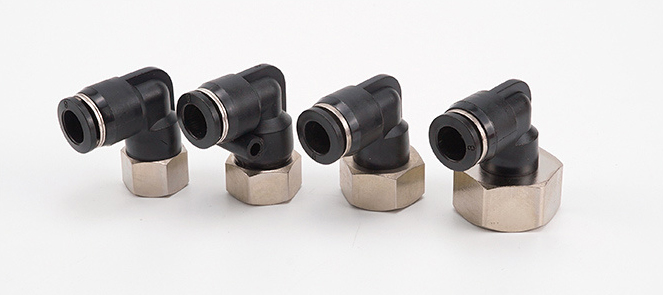

• Automated Manufacturing: Delivering reliable air pressure to robotic arms and assembly production lines where continuous motion demands vibration-proof connections.
• Packaging Equipment: Ensuring synchronized material handling and sorting operations without the risk of sudden pressure drops.
• Automotive Production: Resisting the sparks, dust, and mechanical stress inherent in automotive manufacturing and heavy welding equipment bays.
• Food & Beverage: Utilizing food-grade internal seals to safely manage pneumatic controls within processing machinery requiring frequent cleaning.
• Precision Production: Providing clean, stable air flow for sensitive textile, printing, and semiconductor production equipment.
• Heavy Molding: Integrating into the high-pressure pneumatic control systems of industrial injection molding machines.

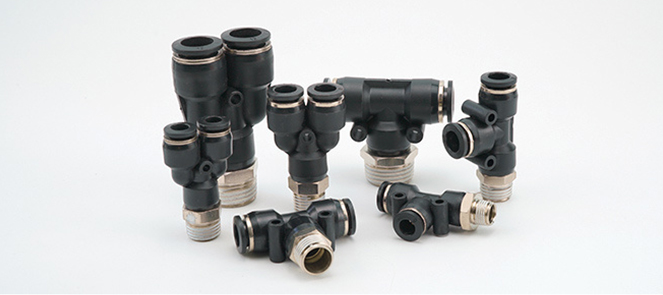

System efficiency relies entirely on component reliability. That is why all our pneumatic quick connect fittings comply strictly with ISO international standards. We implement a mandatory 100% testing protocol for pressure resistance, sealing integrity, and vibration tolerance on every batch. By achieving true "zero leakage" performance, these fittings actively eliminate compressed air loss, which significantly reduces factory energy waste and prevents costly equipment downtime. For highly specialized environments, we offer extensive custom support. Whether your project requires non-standard port sizes, special material configurations like 316 stainless steel or PEEK for extreme chemical resistance, our dedicated technical team provides one-on-one engineering guidance. We help you navigate complex specifications to ensure you select the exact configuration needed, completely avoiding the systemic failure risks associated with improper fitting selection.
