The quick connect pneumatic fitting for automation systems utilizes an advanced push-to-connect mechanism that fundamentally streamlines assembly line operations. By simply inserting the calibrated pneumatic tubing into the receptacle, operators achieve a secure, pressure-tight lock in under three seconds. This method eliminates the need for wrenches, thread sealants, or specialized training, directly translating to substantial reductions in manual labor costs and assembly time. You will notice a distinct, tactile click when the tube seats properly. Internally, a precision-machined 304 stainless steel grab ring anchors the tubing wall, while a high-density NBR seal ring compresses to deliver absolute zero-leakage performance, even when subjected to continuous mechanical vibration in heavy-duty automated cycles. This optimized design effectively reduces long-term system maintenance expenditures.
Engineered specifically for rigorous industrial environments, these plastic pneumatic tube fittings accommodate a broad working pressure spectrum from 0 to 1.0MPa. This range perfectly aligns with the standard 0.2-0.7MPa operating requirements of mainstream pneumatic cylinders and directional control valves. Thermally stable, the standard configuration performs reliably across temperature gradients from -20℃ to +70℃. Whether deployed in chilled clean room facilities or elevated-temperature manufacturing workshops, the engineered polymer body resists thermal deformation, ensuring the internal O-rings maintain their critical sealing geometry without hardening or cracking over extended operational lifespans.

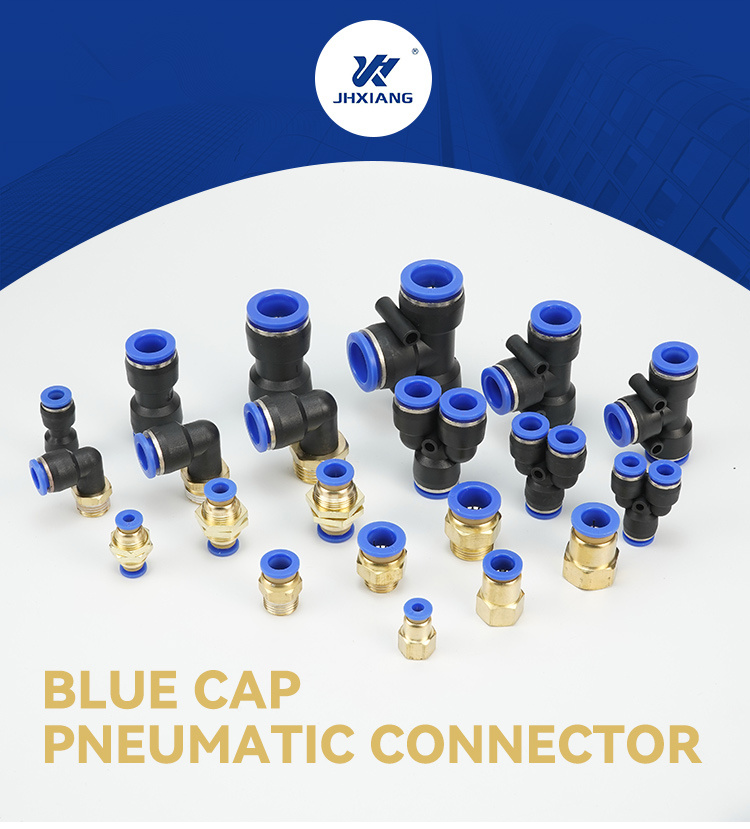

To support complex fluid routing architectures, we provide an extensive portfolio of fitting geometries, encompassing straight, elbow, tee, cross, and bulkhead configurations. The receptacles accept tubing outer diameters ranging from 4mm up to 16mm, paired with versatile thread specifications including M3 through M12, alongside standard PT, NPT, and G inch threads. This comprehensive sizing matrix ensures immediate compatibility with polyurethane (PU), polyamide (PA), polyethylene (PE), and polytetrafluoroethylene (PTFE) tubing. System integrators can confidently specify these connectors for air source treatment units, solenoid valve manifolds, and robotic end-of-arm tooling.
For environments demanding strict hygiene protocols, our specialized food-grade models are molded from FDA-compliant PA66 engineering plastics paired with food-contact-safe elastomers. These components are entirely free from hazardous heavy metals and toxic plasticizers. The non-porous, smooth exterior surface prevents particulate accumulation and exhibits exceptional resistance to degradation from weak acids, alkaline solutions, and aggressive industrial cleaning agents. Furthermore, the utilization of recyclable, eco-friendly polymers assists facilities in minimizing their carbon footprint and adhering to increasingly stringent global environmental sustainability regulations.

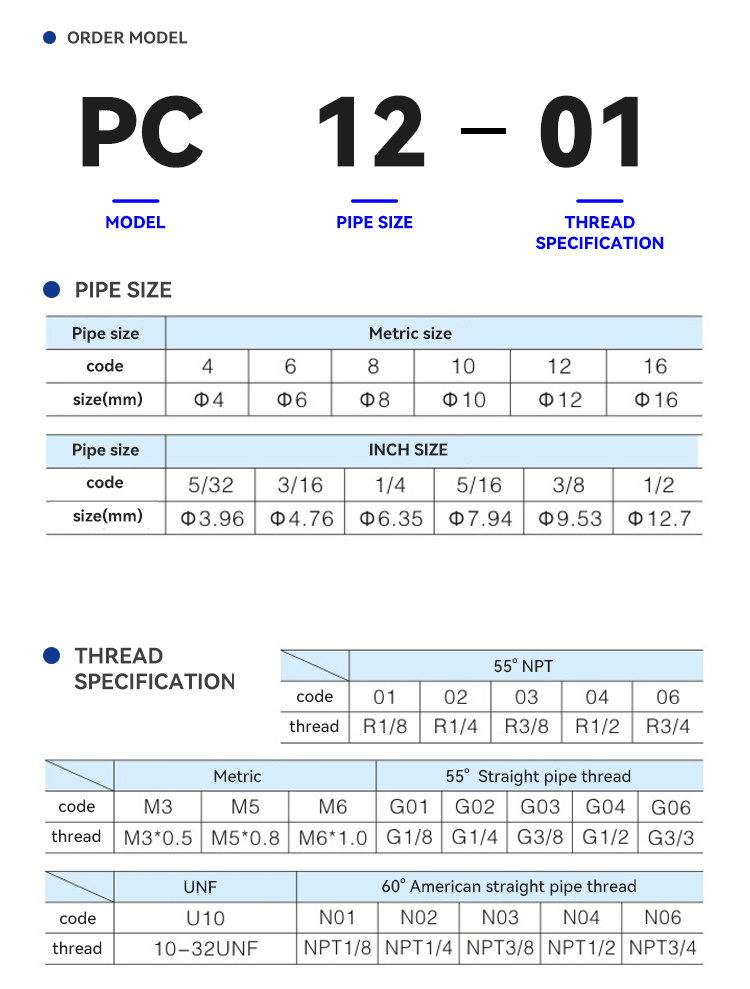

Category | Sub-category | Full Specification Details |
Model Nomenclature | Standard Order Model | PC 12 - 01 (Structure: Basic Model Code PC - Tube Size Code - Thread Specification Code) |
Tube Size Specifications | Metric Tube Size | Tube Size Code: 4 / 6 / 8 / 10 / 12 / 16 Corresponding Outer Diameter: ø4mm / ø6mm / ø8mm / ø10mm / ø12mm / ø16mm |
Inch Tube Size | Tube Size Code: 5/32" / 3/16" / 1/4" / 5/16" / 3/8" / 1/2" Corresponding Outer Diameter: ø3.96mm / ø4.76mm / ø6.35mm / ø7.94mm / ø9.53mm / ø12.7mm | |
Thread Specifications | 55° Taper Thread (R) | Thread Code: 01 / 02 / 03 / 04 / 06 Corresponding Thread: R1/8 / R1/4 / R3/8 / R1/2 / R3/4 |
Metric Straight Thread | Thread Code: M3 / M5 / M6 Corresponding Thread: M3×0.5 / M5×0.8 / M6×1.0 | |
55° Straight Pipe Thread (G) | Thread Code: G01 / G02 / G03 / G04 / G06 Corresponding Thread: G1/8 / G1/4 / G3/8 / G1/2 / G3/4 | |
60° American Thread (UNF & NPT) | Thread Code: N01 / N02 / N03 / N04 / N06 / N08 Corresponding Thread: 10-32UNF / NPT1/8 / NPT1/4 / NPT3/8 / NPT1/2 / NPT3/4 | |

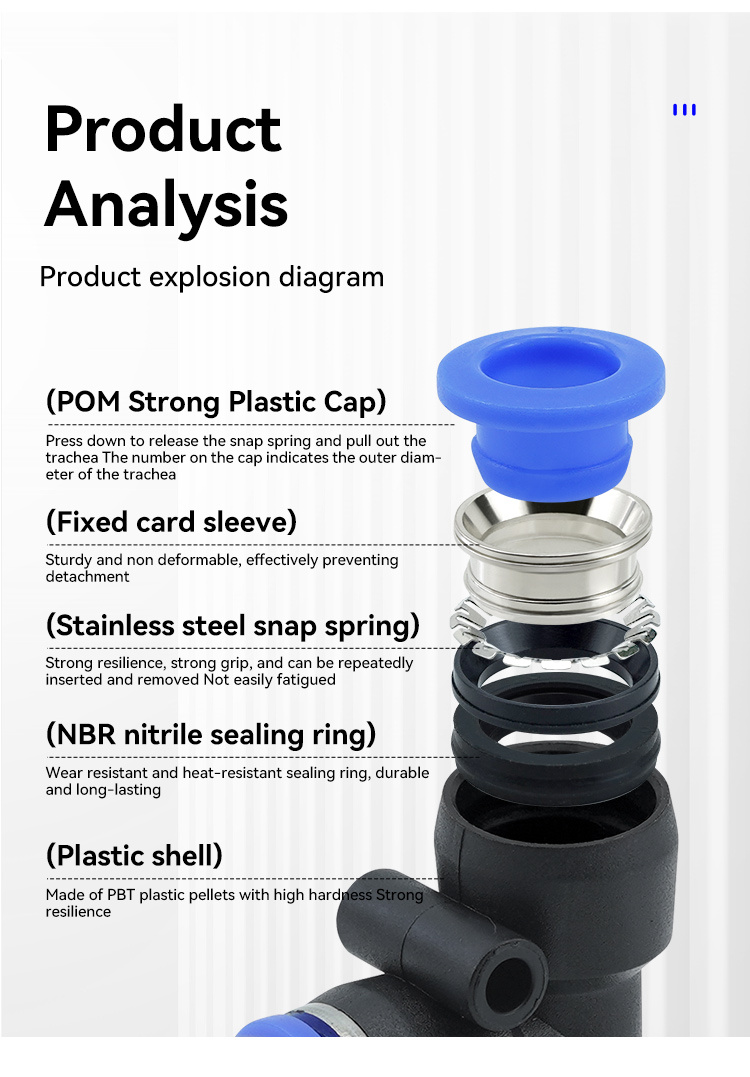

Core Material & Performance | POM Strong Plastic Cap | Press to release the snap spring for tube removal; marked with tube outer diameter for quick identification; high strength and impact resistance |
Fixed Card Sleeve | Sturdy anti-deformation material, no deformation under pressure, effectively prevents tube detachment | |
Stainless Steel Snap Spring | Superior resilience, strong clamping force, supports repeated plugging and unplugging with low fatigue | |
NBR Nitrile Sealing Ring | Excellent wear and heat resistance, long-lasting and reliable sealing performance | |
Plastic Shell | Made of high-hardness PBT plastic pellets, with strong resilience and stable structural performance |
Every plastic pneumatic fitting for air tubing is the result of meticulous engineering, comprising five distinct precision components: a resilient engineering plastic (PA66/POM) housing, a 304 stainless steel grab ring, an elastic NBR seal ring, a color-coded plastic release collet, and a durable thread O-ring. The primary housing is injection-molded using high-toughness polymer pellets, yielding a component that feels structurally rigid yet lightweight, capable of absorbing sudden pressure spikes without fracturing. The internal stainless steel grab ring features precisely angled, sharp teeth designed to grip the tubing securely without scoring or compromising the outer wall integrity. Complementing this, the NBR seal provides a pliable, consistent barrier against air escape. Even after thousands of manual insertion and release cycles, the structural geometry remains intact, minimizing long-term system maintenance expenditures and preventing unexpected pressure drops.
These plastic pneumatic fittings serve as the critical connection nodes across a multitude of demanding industrial sectors. They are the preferred tubing connection solution for engineers prioritizing low-corrosion, lightweight profiles, and rapid-installation capabilities in modern pneumatic architectures:
Food & Beverage Processing Lines: Resisting daily washdowns and chemical sanitizers while maintaining hygienic fluid transfer.
Pharmaceutical Production Equipment: Providing particulate-free operation within controlled environments and stringent clean rooms.
Automated Packaging Machinery: Facilitating rapid actuation for sorting, folding, and sealing mechanisms where lightweight components reduce moving mass.
Electronic Assembly Lines: Ensuring precise, vibration-resistant air supply to sensitive robotic arms and automated pick-and-place equipment.
Textile & Weaving Machinery: Delivering consistent pneumatic power in high-dust environments without clogging or mechanical failure.
Laboratory Pneumatic Systems: Offering clean, reliable air routing for sensitive analytical instruments.
All our push-to-connect plastic pneumatic fittings comply strictly with ISO pneumatic fluid component standards and CE safety directives, facilitating smooth entry into rigorous European and American markets. Our laboratory-grade quality control protocol mandates 100% automated air tightness testing and maximum pressure resistance inspections prior to packaging. This full-inspection mechanism keeps our product defect and return rates at an industry minimum, ensuring near-zero defect delivery. We provide comprehensive OEM/ODM custom support for equipment manufacturers, including tailored fitting configurations, special elastomer formulations for extreme environments, distinct color customization for complex circuit identification, and permanent laser marking services. We offer stable bulk supply, free sample testing, and professional technical guidance for industrial system integrators.
Operating a modernized production facility equipped with advanced CNC machining centers and automated injection molding lines, we guarantee a highly stable supply chain capable of fulfilling massive procurement orders with rapid response times. Our intelligent production scheduling and expansive warehousing logistics ensure that standard fitting configurations are dispatched swiftly, while large-scale custom orders meet precise delivery deadlines. To comprehensively mitigate procurement risks, we offer flexible, secure payment structures alongside robust order fulfillment escrow services. Coupled with our cross-border technical support team, buyers receive end-to-end transaction protection, from initial design consultation to post-delivery integration, ensuring a reliable and risk-free sourcing experience.
